Steering Column Opening Seal: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected or damage to the steering column internal sensor may result.

NOTE: Use a steering wheel holding device (such as Hunter ® 28-75-1 or equivalent).

Keep the steering wheel in the straight ahead position.

Courtesy of FORD MOTOR COMPANY
NOTE: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

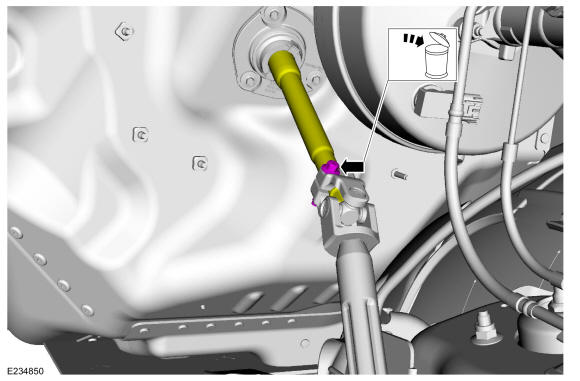

Remove and discard the bolt and disconnect the upper shaft from the lower shaft.

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

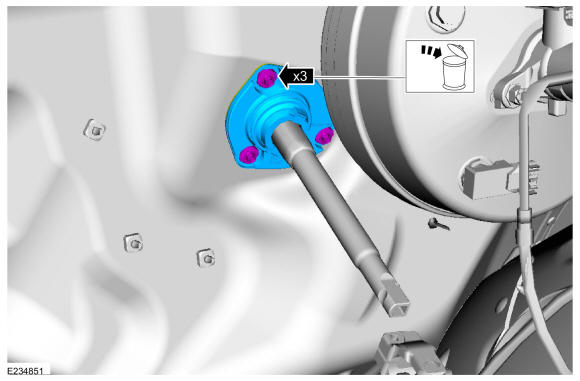

Remove and discard the bolts and remove the steering column opening seal.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
