Rear Parking Aid Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear bumper. Refer to: Rear Bumper .
- Disconnect the rear parking aid sensor electrical connector.

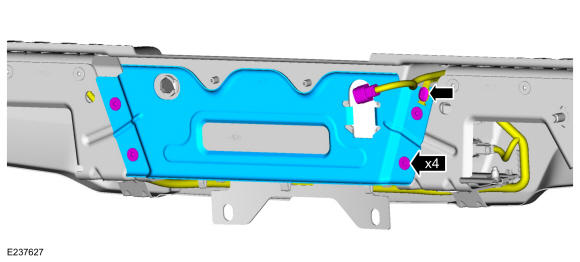

- Remove the push pin, the bolts and the rear bumper center bracket.
Torque: 18 lb.ft (25 Nm)
-
NOTE: On both sides.

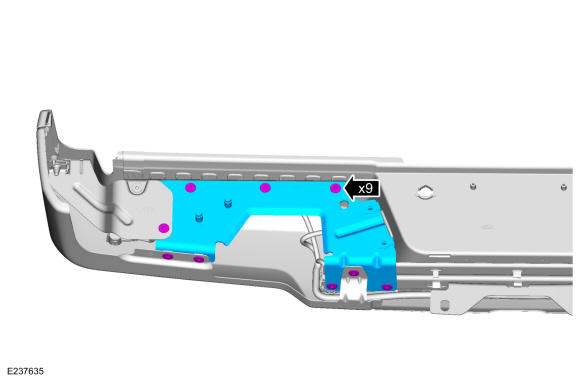

Remove the bolts and the outer reinforcement.
Torque: 18 lb.ft (25 Nm)

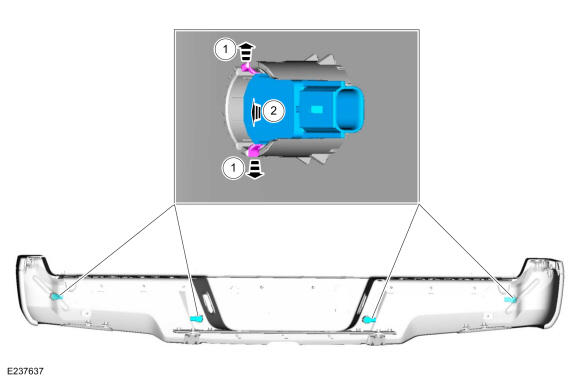

- Remove the rear parking aid sensor.
- Release the tabs.
- Remove the sensor from the bracket.
