Front Seat Track Motor: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown, passenger seat similar.
-

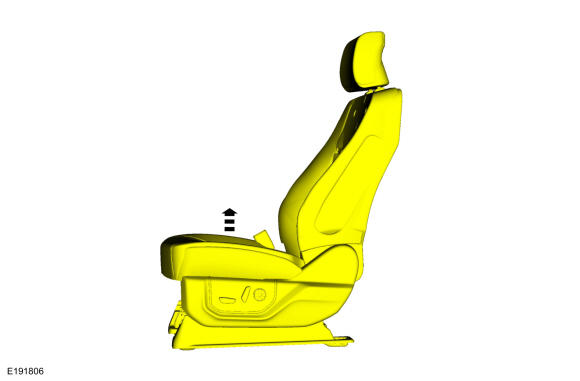

NOTE: Positioning the seat fully upward provides access to service the seat track motor with the seat in the vehicle.
Move the front seat to the full upward position.
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
- Disconnect the seat harness electrical connector(s).
- Detach the wiring harness from the pin-type retainer.
- Release the locking tab(s) and rotate the position assurance lever(s).
- Detach the seat track wiring harness connector retainer(s) from the seat track motor bracket.
-
NOTE: Seat track components are removed for clarity.
Disconnect the seat track motor electrical connector, detach the wiring harness retainers and position the wiring harness aside.
-

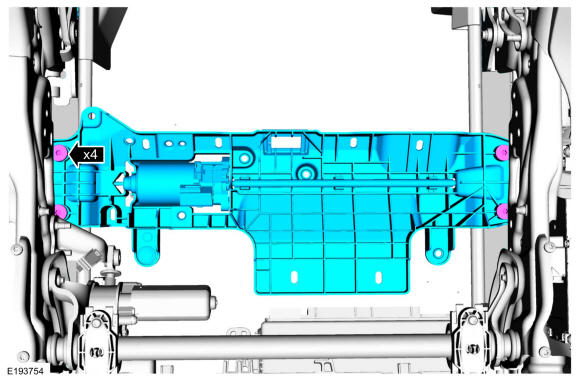

NOTE: Seat track components and wiring harnesses are removed for clarity.
Remove the bolts and the seat track motor.
