Front Seat Power Lumbar Assembly - Vehicles With: Multi-Contour Seats: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.
  1. Remove the SCMG or SCMH. Refer to: Driver Multi-Contour Seat Module [SCMG] .
  2. Remove the front seat backrest blower motor. Refer to: Front Seat Backrest Blower Motor .

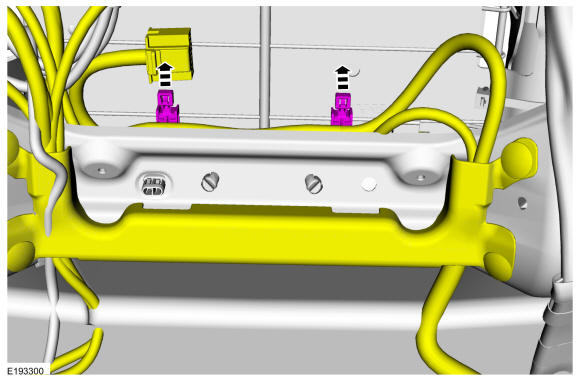

  3. Release the backrest wiring harness from the power lumbar spring and position the wiring harness aside.
    GFD206616Courtesy of FORD MOTOR COMPANY

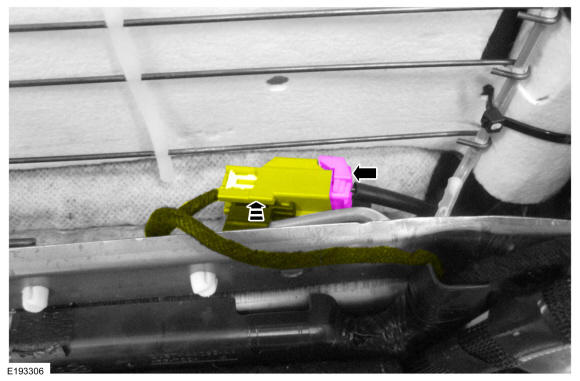

  4. Disconnect the power lumbar pump electrical connector and detach the connector from the seat frame.
    GFD206617Courtesy of FORD MOTOR COMPANY

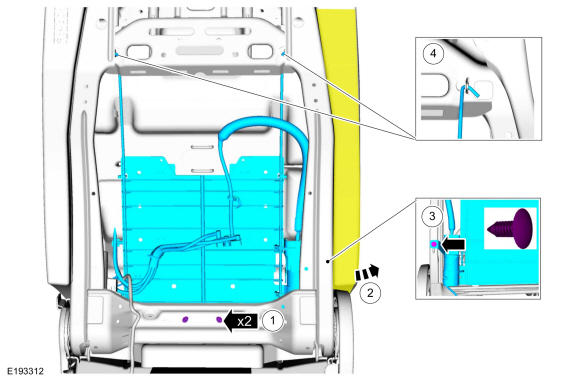

  5. Remove the seat power lumbar assembly.

    1. Release the lower retainers.
    2. Position the cushion foam to access the seat power lumbar assembly pin-type retainer.
    3. Remove the pin-type retainer.
    4. Release the upper J-hook.

GFD206618Courtesy of FORD MOTOR COMPANY
