Front Seat Cushion Cover: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

NOTE: Removal steps in this procedure may contain installation details.

All seats

Remove the front seat. Refer to: Front Seat .

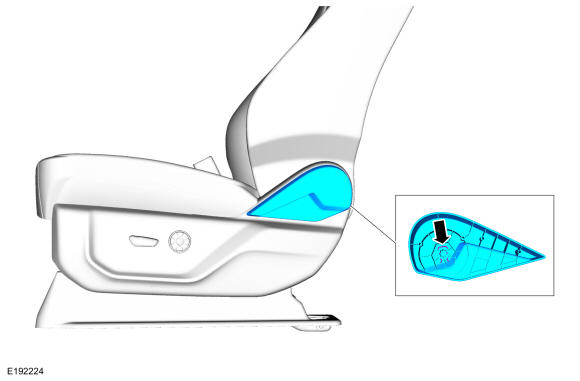

Remove the side shield screws.

Courtesy of FORD MOTOR COMPANY

Manual seat
1. Remove the clip and the recline handle.
2. If equipped. Remove the clip and the lumbar handle.
Courtesy of FORD MOTOR COMPANY
Remove the side shield.
1. Firmly grasp the side shield, lift up and out, separating the side shield from the recliner bracket.
2. From underneath, squeeze the retainers together and pull out on the side shield.
3. Slide the side shield forward.
Courtesy of FORD MOTOR COMPANY

Power Seat
If equipped. Remove the clip and the recline handle.

Courtesy of FORD MOTOR COMPANY

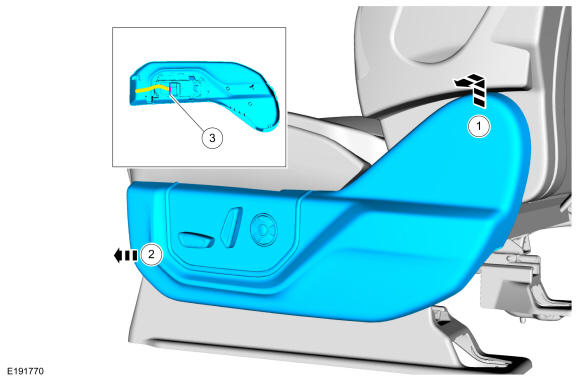

Remove the side shield.
1. Lift up on the rear of the side shield and pull outward.
2. Slide the side shield forward.
3. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

All seats

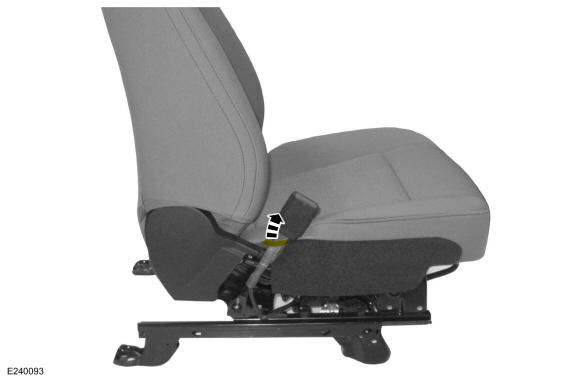

Release the elastic strap from the seatbelt buckle.

Courtesy of FORD MOTOR COMPANY

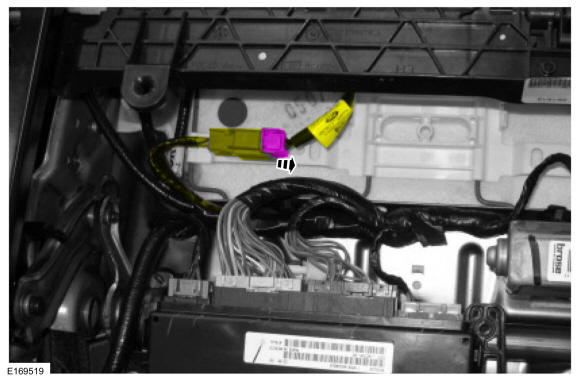

Position the backrest wiring harness(es) aside.
1. Release the electrical connector retainer(s) from the seat track.
2. Release the locking tab(s) and disconnect the backrest wiring harness electrical connector(s).
Courtesy of FORD MOTOR COMPANY

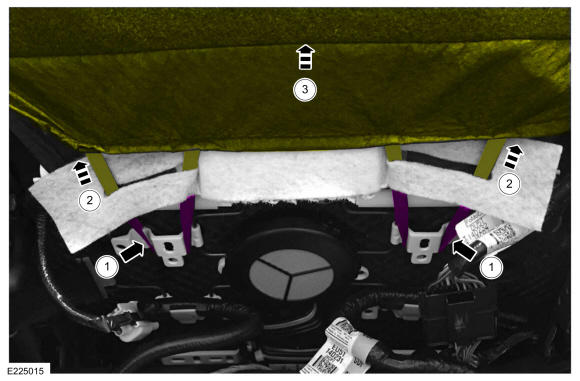

1. Detach the backrest cover straps.
2. If equipped. Route the backrest cover straps through the backrest blower motor snorkel.
3. Position the backrest cover upward.
Courtesy of FORD MOTOR COMPANY

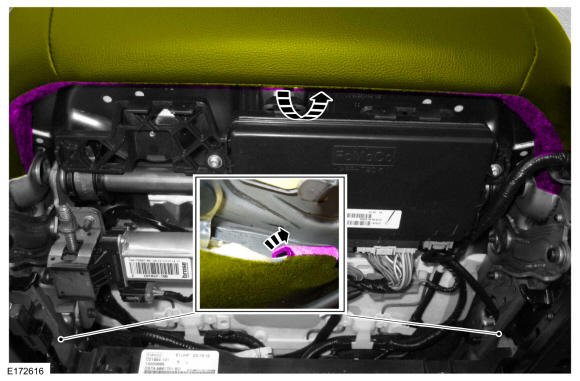

Detach the cushion cover J-clips and position the cushion cover upward.

Courtesy of FORD MOTOR COMPANY

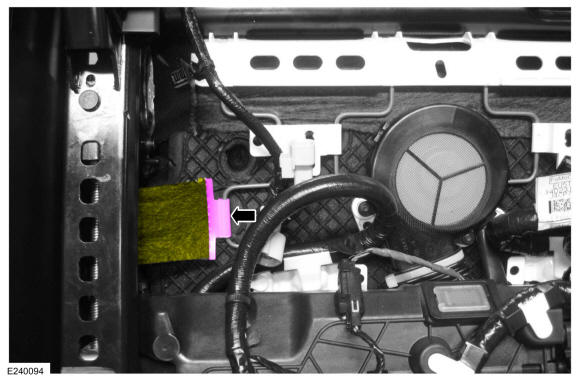

If equipped with heated seat. Disconnect the cushion heater mat electrical connector.

Courtesy of FORD MOTOR COMPANY

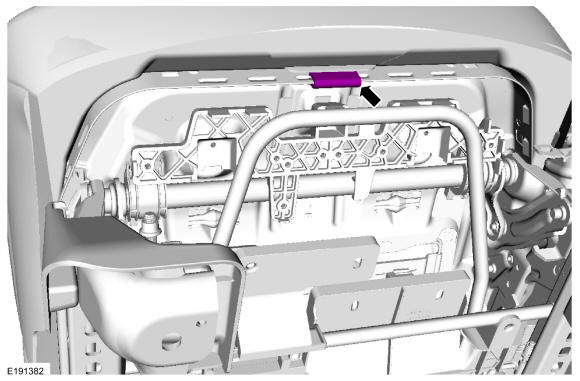

Detach the J-clip and position aside.

Courtesy of FORD MOTOR COMPANY

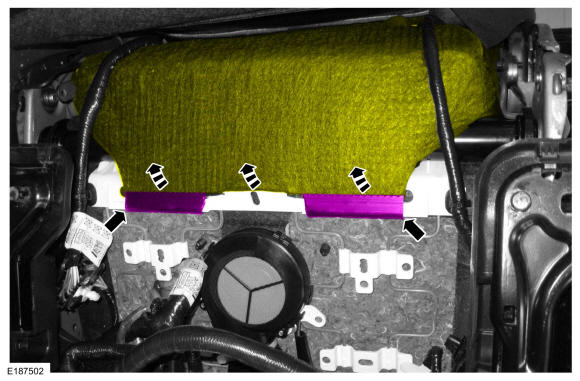

Release the J-clips and position the front of the seat cushion cover upwards.

Courtesy of FORD MOTOR COMPANY
If equipped with a heated seat. Detach the cushion heater mat J-clip.

Courtesy of FORD MOTOR COMPANY

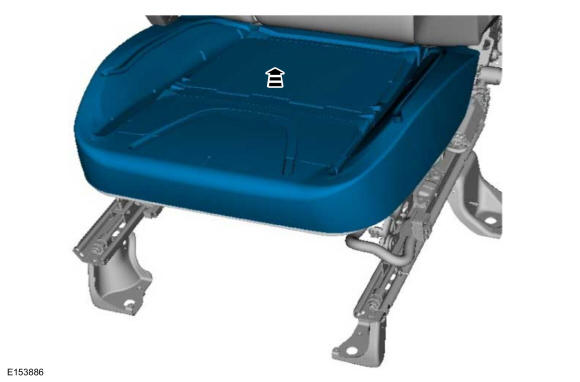

Remove the seat cushion cover and foam as an assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

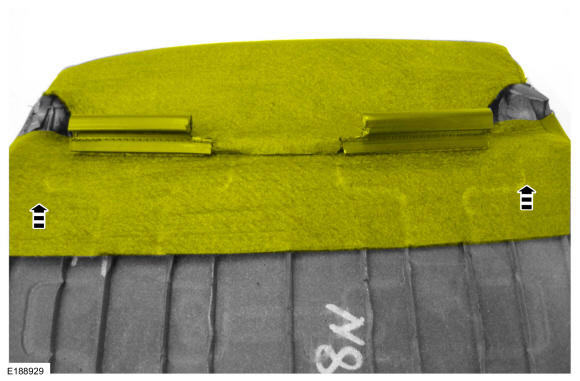

Invert the rear portion of the seat cushion cover.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat cushion from the hook-and-arrow or the hook may be torn from the seat cushion foam pad.

NOTE: This step is only necessary when installing a new component.

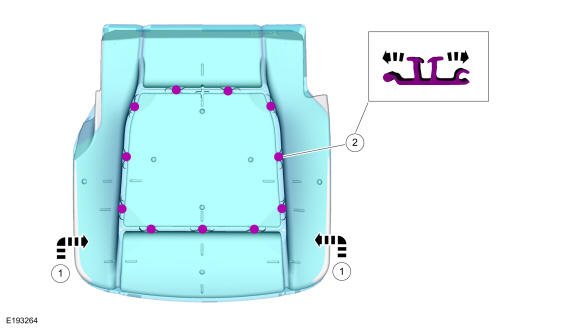

Remove the seat cushion cover.
1. Invert the seat cushion cover.
2. Release the hook-and-arrows.

Courtesy of FORD MOTOR COMPANY
