Front Seat Cushion Blower Motor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat cushion cover and foam as an assembly. Refer to: Front Seat Cushion Cover .
  2. If equipped with multi-contour seat. Remove the pin-type retainers and position the front of the seat cushion adjuster upward.
    GFD206597Courtesy of FORD MOTOR COMPANY

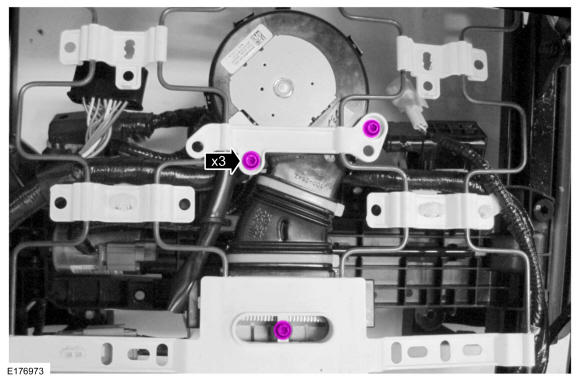

  3. Remove the front seat cushion blower motor screws.
    GFD206598Courtesy of FORD MOTOR COMPANY

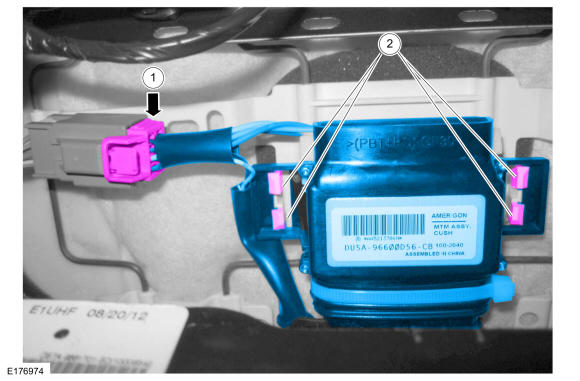

  4. Remove the front seat cushion blower motor.

    1. Disconnect the front seat cushion blower motor electrical connector.
    2. Release the locking tabs.

GFD206599Courtesy of FORD MOTOR COMPANY
