Front Seat Cushion Adjuster - Vehicles With: Multi-Contour Seats: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

Remove the front seat cushion cover and foam as an assembly. Refer to: Front Seat Cushion Cover .

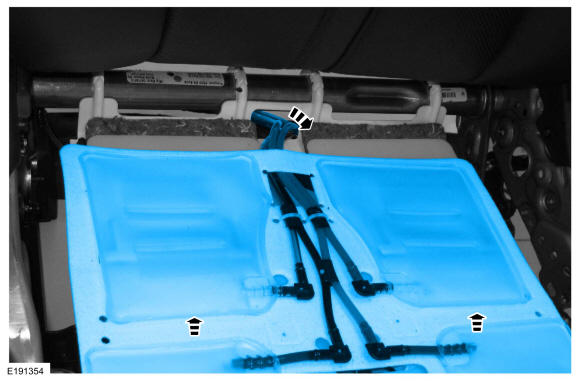

Release the backrest cover lower J-clips.

Courtesy of FORD MOTOR COMPANY
1. NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

  Unzip the backrest cover zipper on each side.
2. Position the backrest cover up.
Courtesy of FORD MOTOR COMPANY
NOTE: For installation, note the routing of the snorkel.

Detach the hook-and-loop retainer and position the backrest cover strap aside.

Courtesy of FORD MOTOR COMPANY
Detach the multi-contour seat cushion hose retainer.

Courtesy of FORD MOTOR COMPANY
Release the locking tab, and disconnect the hose coupling assembly (orange) from the SCMG.

Courtesy of FORD MOTOR COMPANY
Feed the multi-contour seat hose assembly out through the backrest cover opening.

Courtesy of FORD MOTOR COMPANY

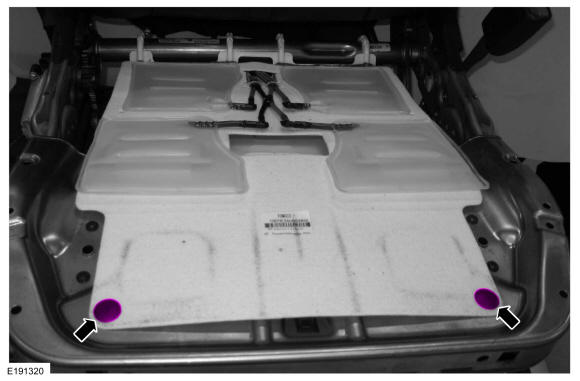

Remove the seat cushion adjuster pin-type retainers.

Courtesy of FORD MOTOR COMPANY
Remove the seat cushion adjuster and route out the hoses.

Courtesy of FORD MOTOR COMPANY
