Front Seat Backrest Cover: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.

NOTE: Driver seat shown, passenger seat similar.

All seats

Remove the front seat. Refer to: Front Seat .
Remove the head restraint guide sleeves. Refer to: Front Head Restraint Guide Sleeve .
Position the backrest wiring harness(es) aside.

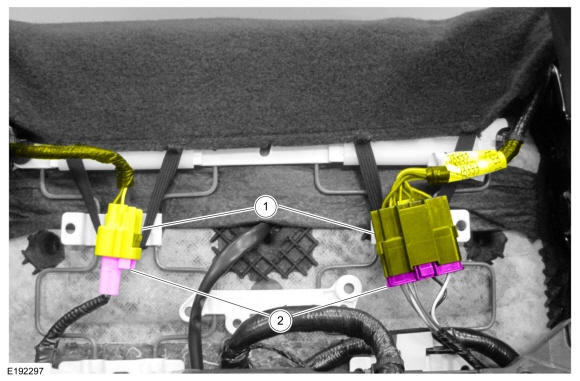

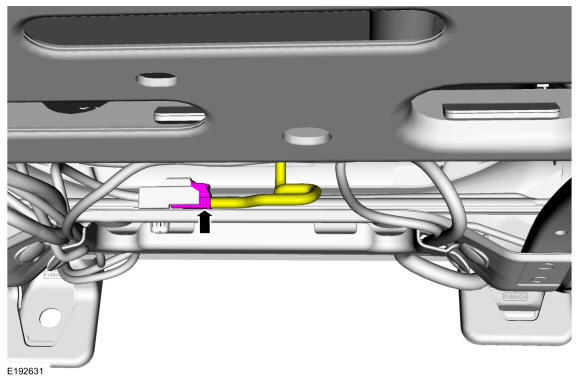

1. Release the electrical connector retainer(s) from the seat track.
2. Release the locking tab(s) and disconnect the backrest wiring harness electrical connector(s).
Courtesy of FORD MOTOR COMPANY
1. Detach the backrest cover straps.

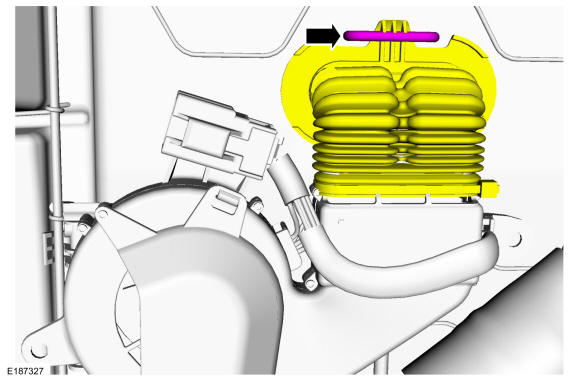

2. If equipped. Route the backrest cover straps through the backrest blower motor snorkel.
3. Position the backrest cover upward.
Courtesy of FORD MOTOR COMPANY

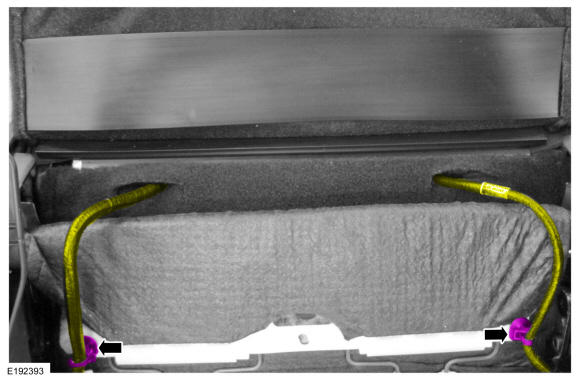

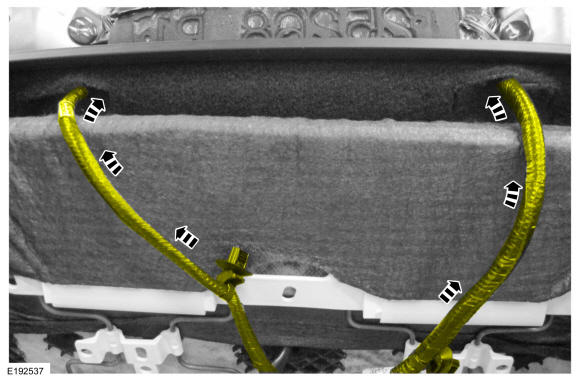

Release the wiring harness retainer(s) and position the wiring harness(es) aside.

Courtesy of FORD MOTOR COMPANY

Manual seat with manual lumbar
Adjust the manual lumbar to the fully relaxed position.

Courtesy of FORD MOTOR COMPANY
1. Remove the clip and the recline handle.
2. Remove the clip and the lumbar handle.
Courtesy of FORD MOTOR COMPANY
Remove the side shield screws.

Courtesy of FORD MOTOR COMPANY
Remove the side shield.
1. Firmly grasp the side shield, lift up and out, separating the side shield from the recliner bracket.
2. From underneath, squeeze the retainers together and pull out on the side shield.
3. Slide the side shield forward.
Courtesy of FORD MOTOR COMPANY
Position the manual lumbar assembly cable away from the seat track.
- Disconnect the cable from the manual lumbar actuator.
- Detach the cable retainers from the seat track.
Courtesy of FORD MOTOR COMPANY

All seats
Remove the side airbag. Refer to: Side Airbag .
NOTE: Power seat with power lumbar shown, manual lumbar similar.

Feed the backrest wiring harness(es) out through the backrest cover opening(s).
- If equipped, feed the manual lumbar cable out through the backrest cover opening.
Courtesy of FORD MOTOR COMPANY
If equipped with climate controlled seat. Disconnect the backrest blower motor manifold from the seat cushion.

Courtesy of FORD MOTOR COMPANY
If equipped with heated seat. Disconnect the backrest heater mat electrical connect.

Courtesy of FORD MOTOR COMPANY

Multi-contour seat

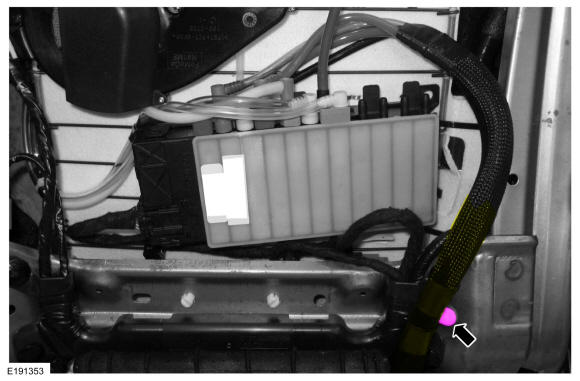

Detach the multi-contour seat cushion hose retainer.

Courtesy of FORD MOTOR COMPANY

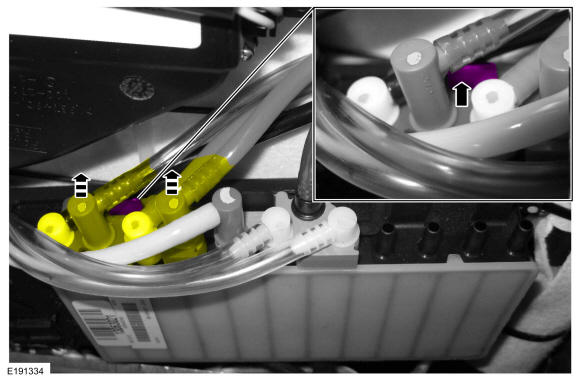

Release the locking tab and disconnect the hose coupling assembly (orange) from the SCMG.

Courtesy of FORD MOTOR COMPANY

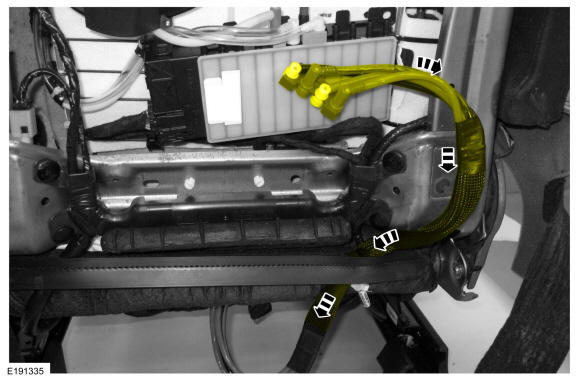

Feed the multi-contour seat hose assembly out through the backrest cover opening.

Courtesy of FORD MOTOR COMPANY

All seats

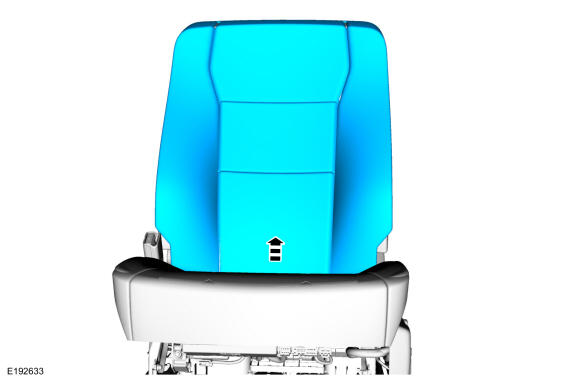

Remove the seat backrest cover and foam as an assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the backrest cover from the hook-and-arrows, or the hooks can be torn from the backrest foam pad.

NOTE: Base front seat shown, all others similar.

NOTE: This step is necessary only when installing a new component.

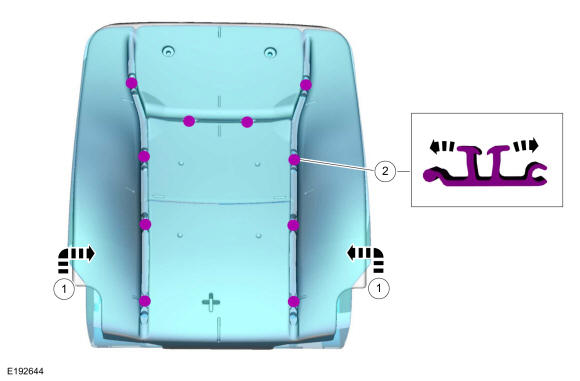

Remove the seat backrest cover.
1. Invert the seat backrest cover.
2. Release the hook-and-arrows.

Courtesy of FORD MOTOR COMPANY
