Front Seat Backrest Blower Motor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Driver seat shown, passenger seat similar.

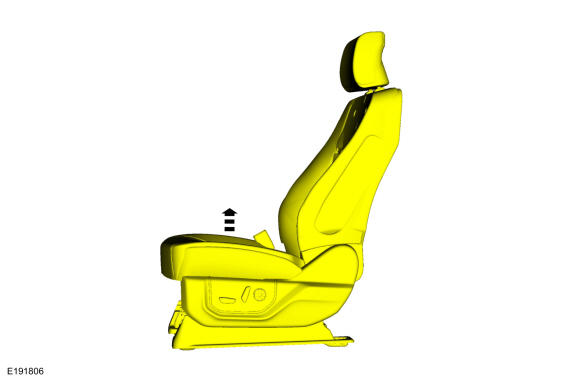

Move the front seat to the full upward position.

Courtesy of FORD MOTOR COMPANY
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Detach the electrical connector retainers, and position the wiring harnesses aside.

Courtesy of FORD MOTOR COMPANY

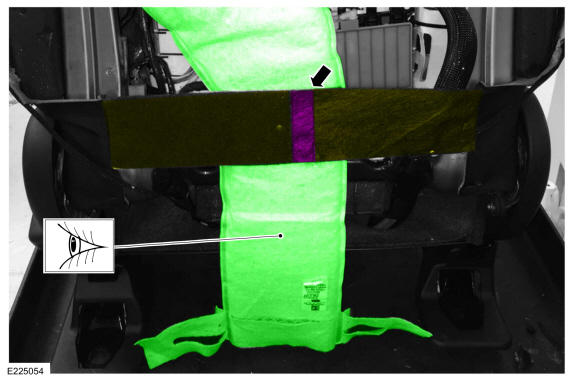

1. Detach the backrest cover straps.
2. Route the backrest cover straps through the backrest blower motor snorkel.
3. Position the backrest cover upward.
Courtesy of FORD MOTOR COMPANY
Release the backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY
1. NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

  Unzip the backrest cover zipper on each side.
2. Position the backrest cover upward.
Courtesy of FORD MOTOR COMPANY
NOTE: For installation, note the routing of the snorkel.

Detach the hook-and-loop retainer and position the backrest cover strap aside.

Courtesy of FORD MOTOR COMPANY

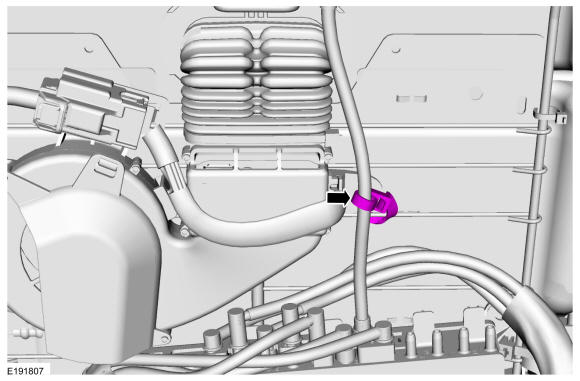

If equipped with a multi-contour seat. Remove the air pump output tube tie strap.

Courtesy of FORD MOTOR COMPANY

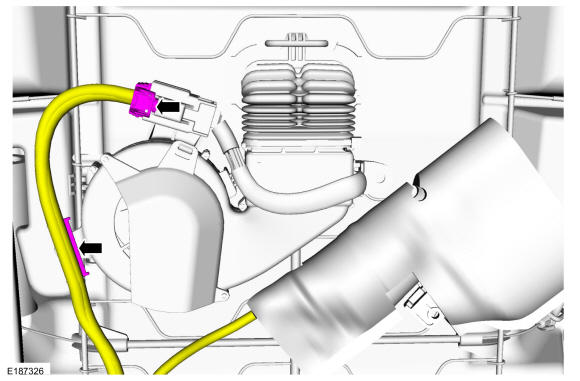

Release the wiring harness retainer and disconnect the blower motor electrical connector.

Courtesy of FORD MOTOR COMPANY
Disconnect the blower motor manifold from the backrest cushion.

Courtesy of FORD MOTOR COMPANY
NOTE: The backrest cover and foam has been removed for clarity.

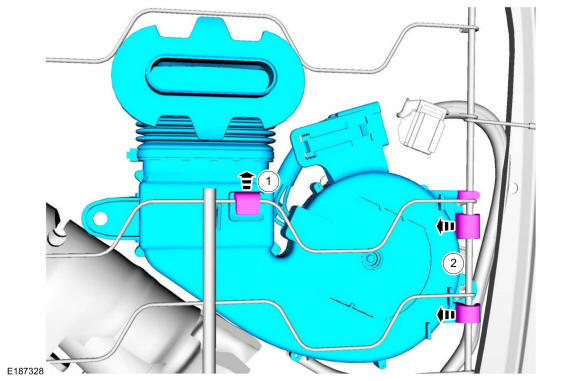

Remove the blower motor.
1. Release the blower motor horizontal retainer.
2. Release the blower motor vertical retainers.

Courtesy of FORD MOTOR COMPANY
