Front Center Seat: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Position the driver seat to access the seat LH bolts.
    GFD206512Courtesy of FORD MOTOR COMPANY
  2. Remove the passenger front seat. Refer to: Front Seat .

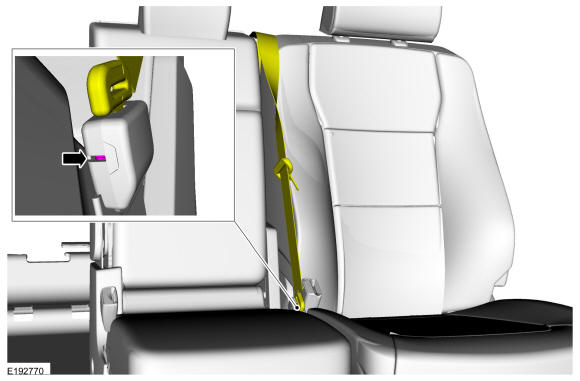

  3. If equipped. Press the locking tab and disconnect the seatbelt from the seatbelt anchor.
    GFD206513Courtesy of FORD MOTOR COMPANY

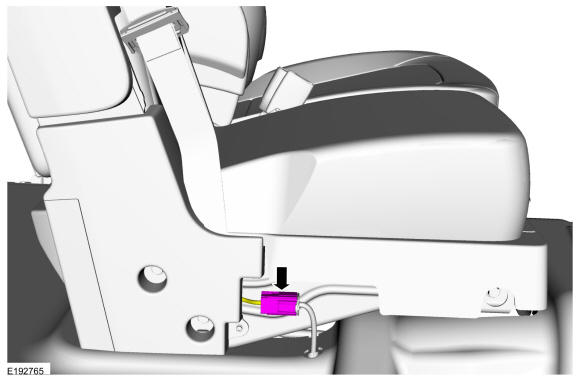

  4. If equipped. Disconnect the seat electrical connector.
    GFD206514Courtesy of FORD MOTOR COMPANY

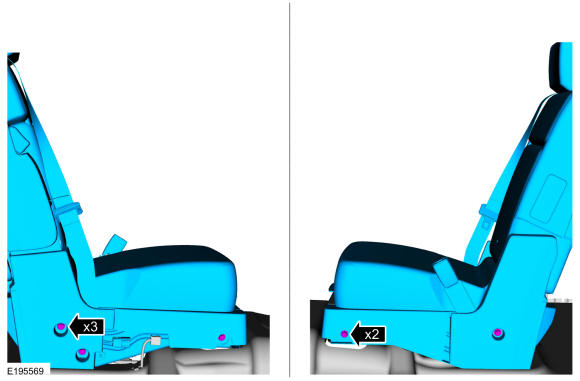

  5. NOTE: Follow the unique instructions or graphics for this step in the installation.

    Remove the bolts and the center seat.

    GFD206515Courtesy of FORD MOTOR COMPANY

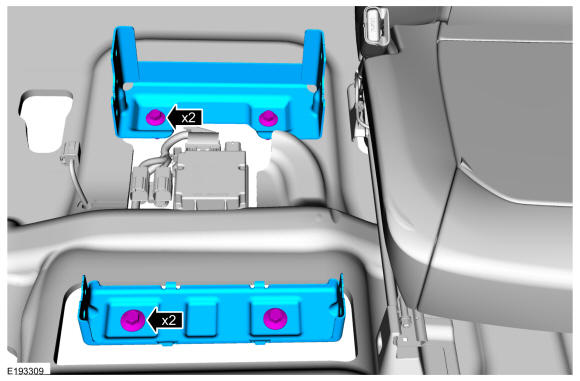

  6. If required. Remove the bolts and the front center seat brackets.

    Torque: 41 lb.ft (55 Nm)

GFD206516Courtesy of FORD MOTOR COMPANY
