Front Center Seat Cushion Cover: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front center seat. Refer to: Front Center Seat .

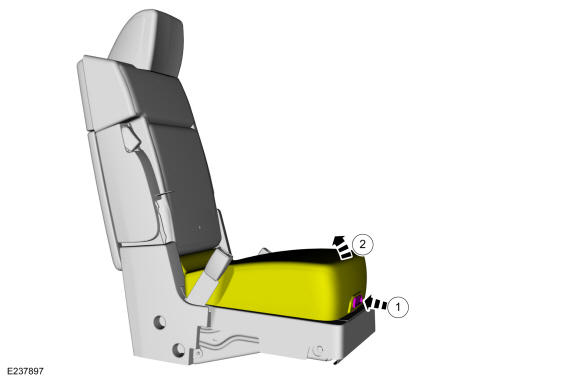

  2. Lift the seat cushion.

    1. Release the seat cushion latch.
    2. Lift the seat cushion.

    GFD206532Courtesy of FORD MOTOR COMPANY

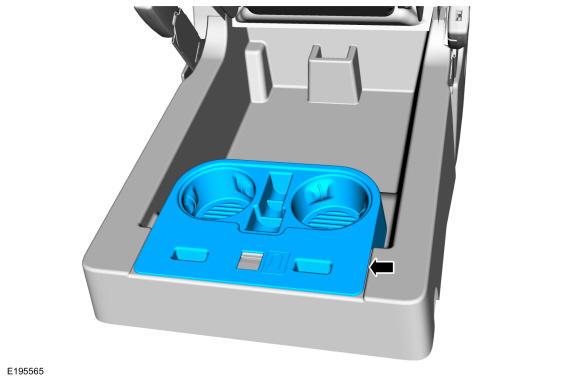

  3. Remove the cup holder.
    GFD206533Courtesy of FORD MOTOR COMPANY

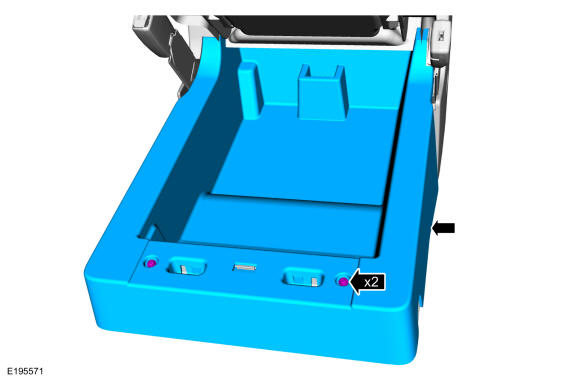

  4. Remove screws and the seat storage tray.
    GFD206534Courtesy of FORD MOTOR COMPANY

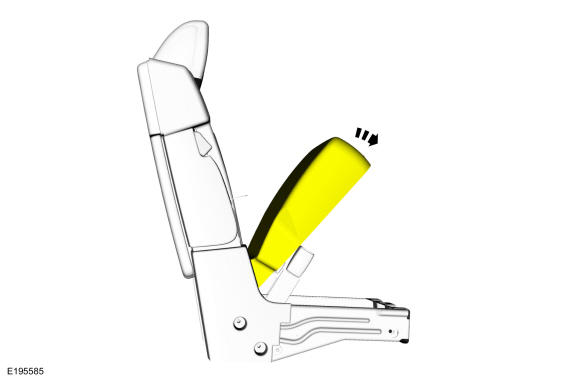

  5. Position the seat cushion down.
    GFD206535Courtesy of FORD MOTOR COMPANY

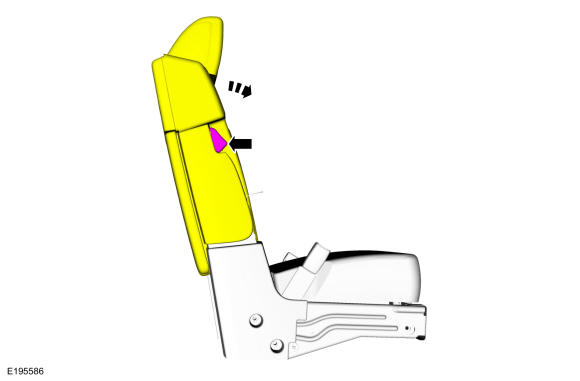

  6. Release the seat latch and fold the seat backrest down.
    GFD206536Courtesy of FORD MOTOR COMPANY

    Regular Cab

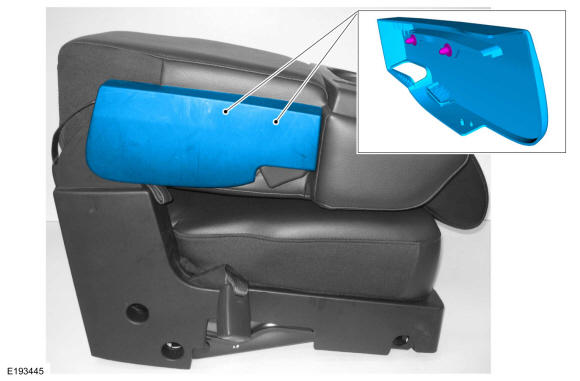

  7. Remove the backrest latch cover.
    GFD206537Courtesy of FORD MOTOR COMPANY

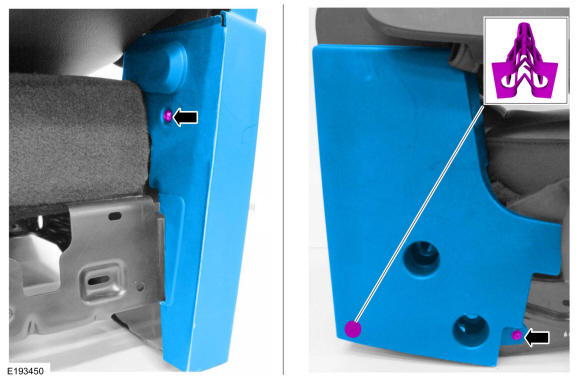

  8. Remove the screws, release the retaining clip and remove the RH side shield.
    GFD206538Courtesy of FORD MOTOR COMPANY

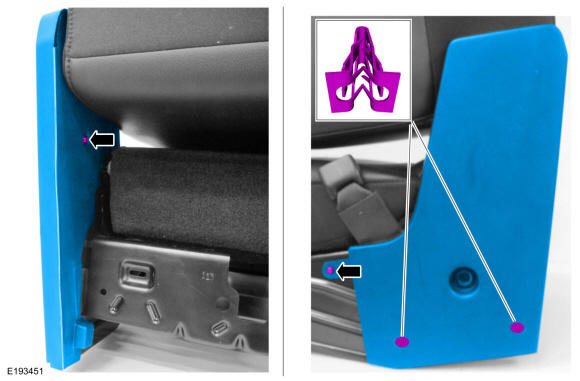

  9. Remove the screws, release the retaining clips and remove the LH side shield.
    GFD206539Courtesy of FORD MOTOR COMPANY

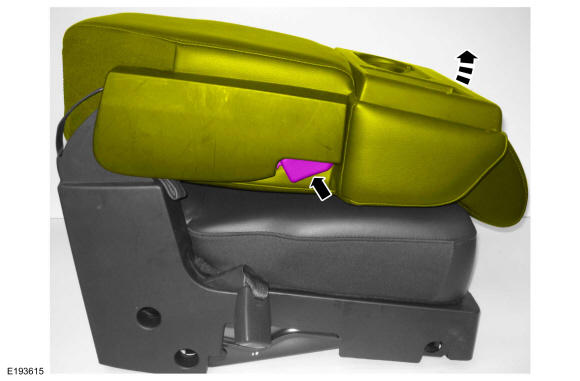

  10. Release the seat latch and raise the seat backrest up.
    GFD206540Courtesy of FORD MOTOR COMPANY

    Super Cab and Crew Cab

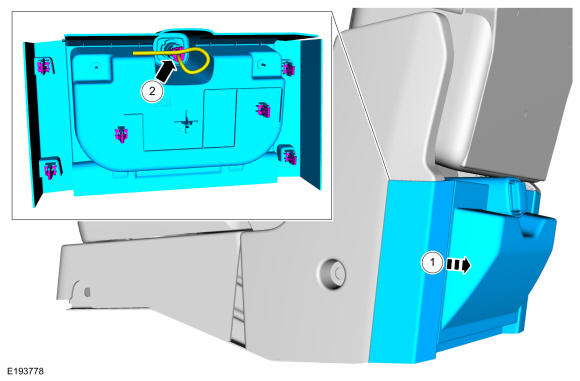

  11. Remove the rear cup holder assembly.

    1. Release the rear cup holder retainers.
    2. Disconnect the auxiliary power point electrical connector.

    GFD206523Courtesy of FORD MOTOR COMPANY

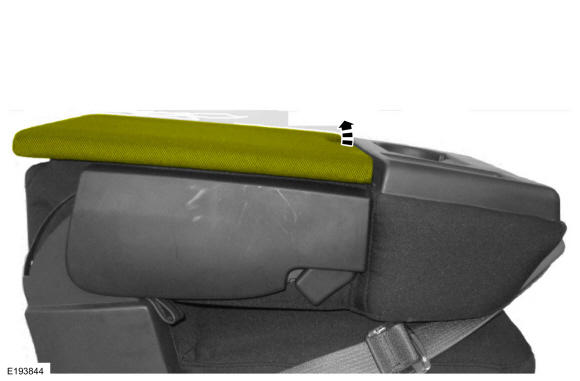

  12. If equipped. Lift the armrest storage compartment lid.
    GFD206524Courtesy of FORD MOTOR COMPANY

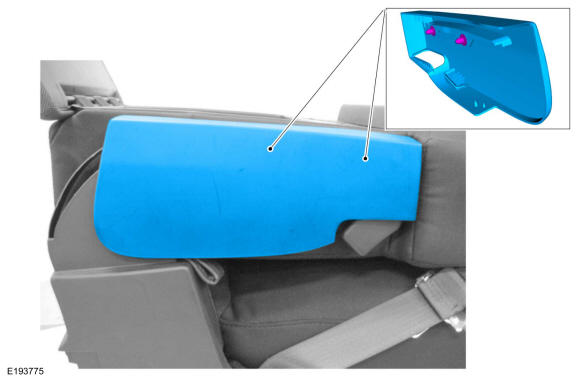

  13. Remove the backrest latch cover.
    GFD206525Courtesy of FORD MOTOR COMPANY

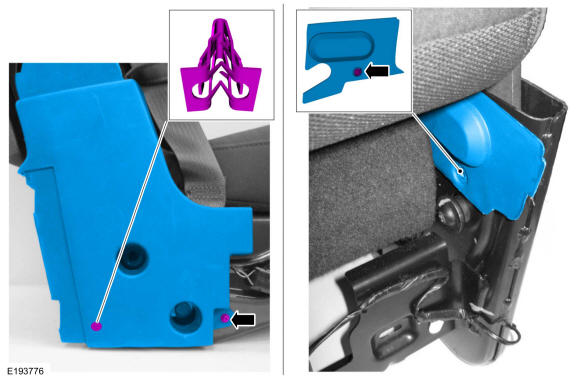

  14. Remove the screws, release the retaining clip and remove the RH side shields.
    GFD206527Courtesy of FORD MOTOR COMPANY

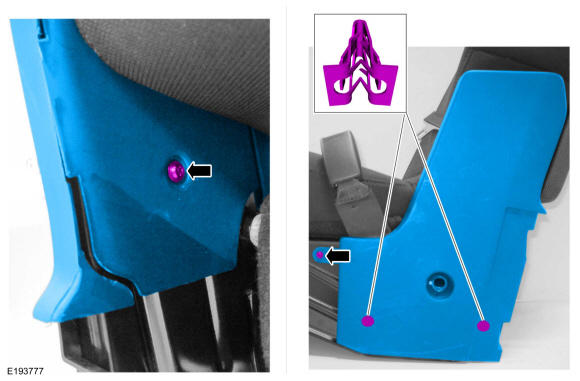

  15. Remove the screws, release the retaining clips and remove the LH side shield.
    GFD206528Courtesy of FORD MOTOR COMPANY

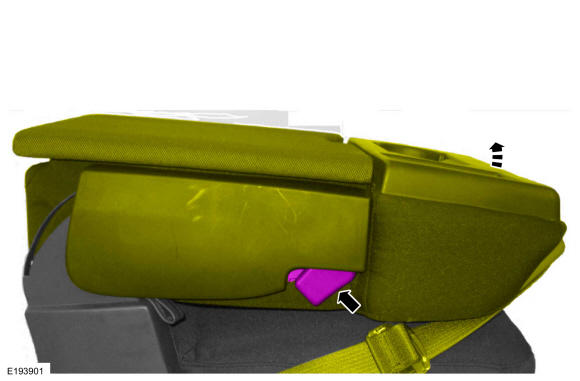

  16. Release the seat latch and raise the seat backrest up.
    GFD206529Courtesy of FORD MOTOR COMPANY

    All vehicles

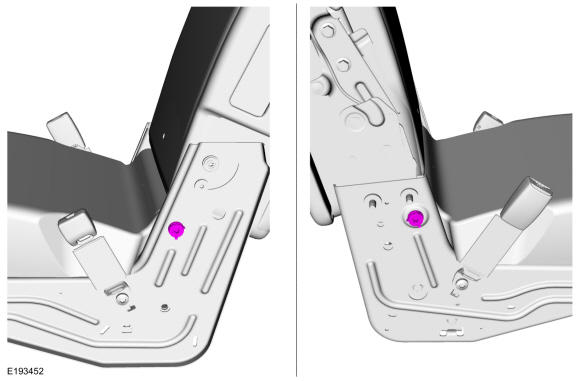

  17. Remove the seat cushion pivot bolts.

    Torque: 26 lb.ft (35 Nm)

    GFD206553Courtesy of FORD MOTOR COMPANY

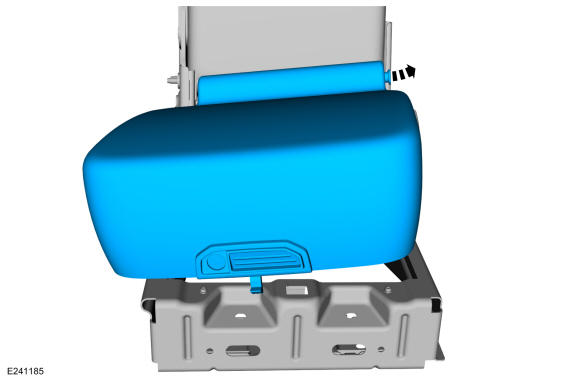

  18. Release the LH side of the seat cushion from the seat cushion base and remove the seat cushion.
    GFD206554Courtesy of FORD MOTOR COMPANY

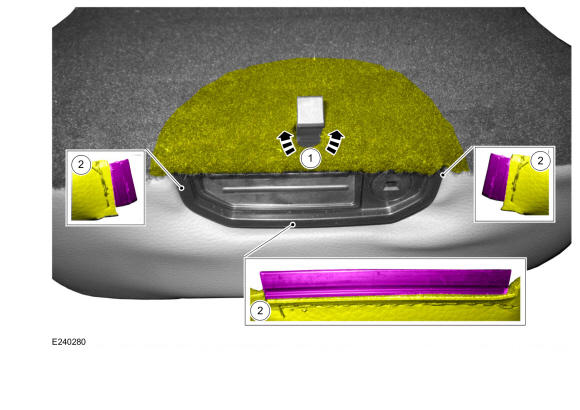

    1. Lift the cushion cover over the seat cushion latch catch.
    2. Detach the cushion cover tabs.
    GFD206555Courtesy of FORD MOTOR COMPANY

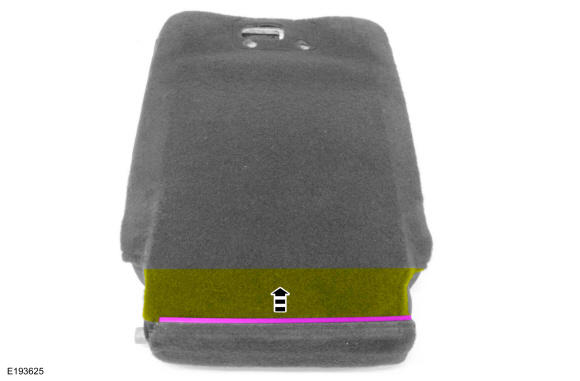

  20. Release the J-hook and position the cushion cover upward.
    GFD206556Courtesy of FORD MOTOR COMPANY

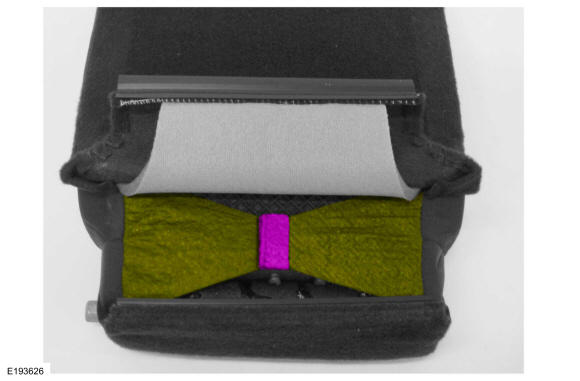

  21. Release the hook-and-loop retainer and position the cushion cover strap aside.
    GFD206557Courtesy of FORD MOTOR COMPANY

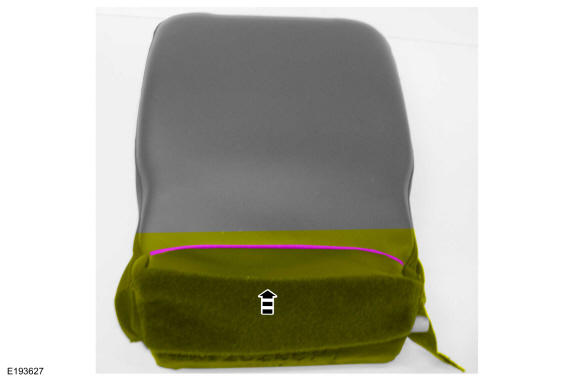

  22. NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strip or the hook-and-loop strip may be torn from the seat cushion foam pad.

    Release the hook-and-loop strip and position the cushion cover upward.

    GFD206558Courtesy of FORD MOTOR COMPANY

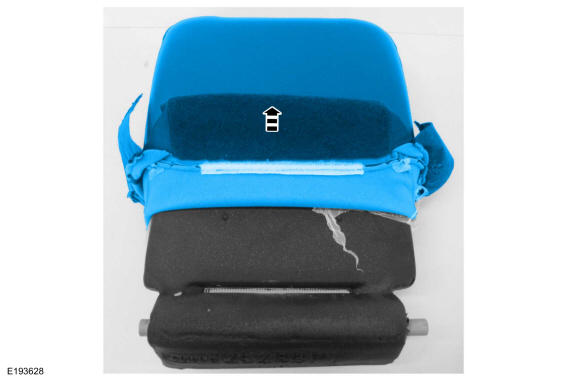

  23. Remove the cushion cover.
GFD206559Courtesy of FORD MOTOR COMPANY
