Front Center Seat Backrest Cover - Crew Cab/Super Cab: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front center seat backrest. Refer to: Front Center Seat Backrest - Crew Cab/Super Cab .

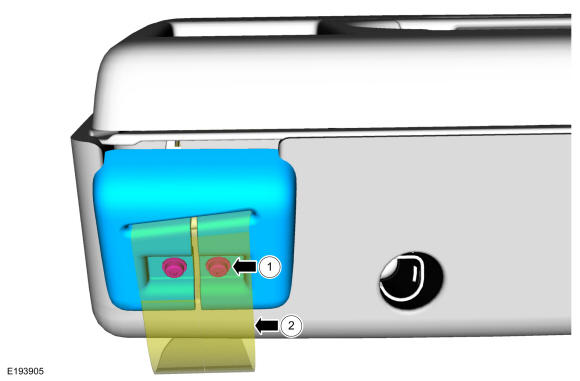

Remove the seatbelt guide.
1. Remove the screws.
2. Position the seatbelt aside.
Courtesy of FORD MOTOR COMPANY

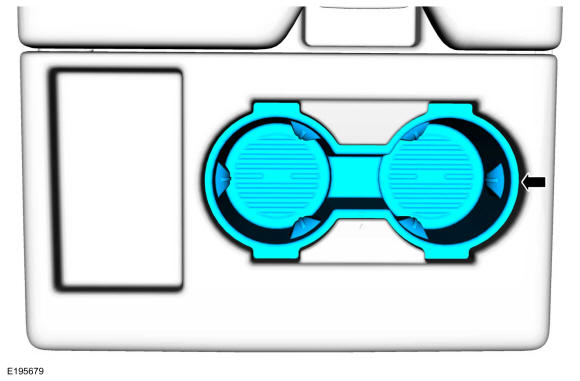

Remove the cup holder insert.

Courtesy of FORD MOTOR COMPANY

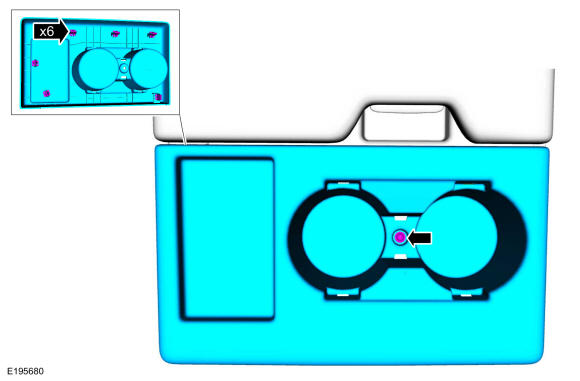

Remove the screw, release the retaining clips and remove the cup holder.

Courtesy of FORD MOTOR COMPANY

Seats with storage tray

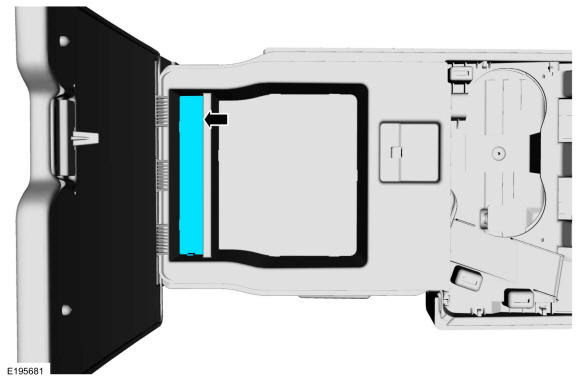

Remove the trim cover.

Courtesy of FORD MOTOR COMPANY

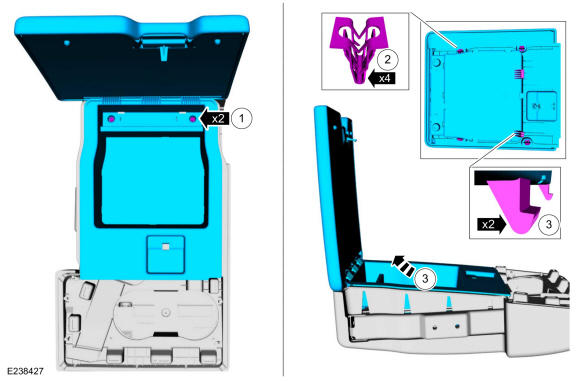

Remove the armrest storage tray.
1. Remove the screws.
2. Release the retainers.
3. Remove the storage tray.
Courtesy of FORD MOTOR COMPANY

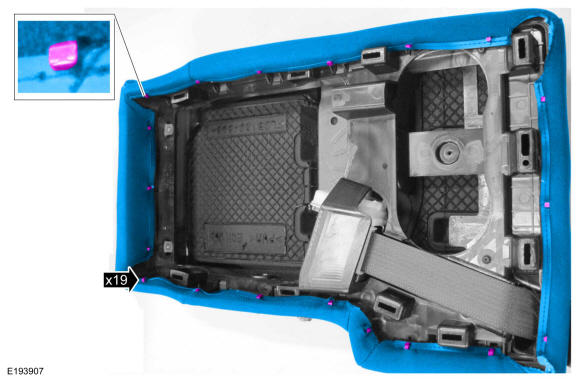

Release the cover from the J-hooks and remove the backrest cover.

Courtesy of FORD MOTOR COMPANY

Seats without storage tray

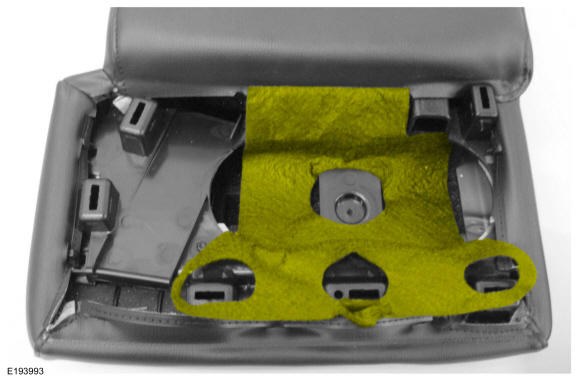

Position the backrest cover flap aside.

Courtesy of FORD MOTOR COMPANY

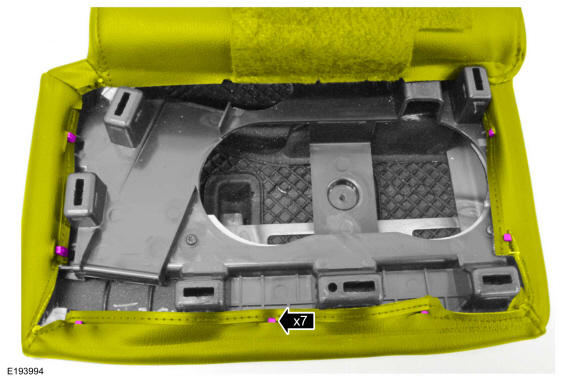

Release the cover from the J-hooks and position the backrest cover aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strip or the hook-and-loop strip may be torn from the seat backrest foam pad.

NOTE: Note the position of the seatbelt for installation.

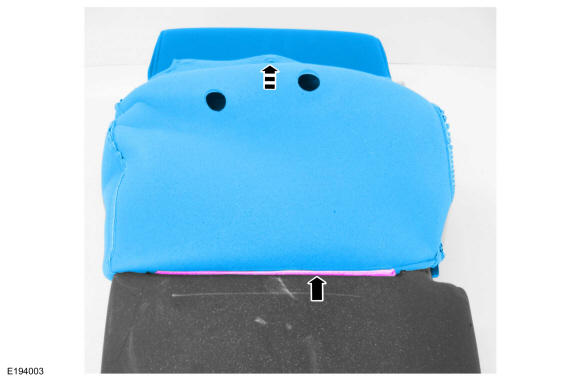

Release the hook-and-loop strip and remove the backrest cover.

Courtesy of FORD MOTOR COMPANY
