Front Center Seat Backrest - Crew Cab/Super Cab: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front center seat. Refer to: Front Center Seat .

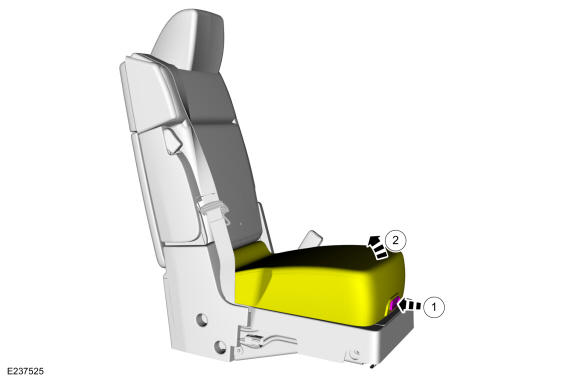

Lift the seat cushion
1. Release the seat cushion latch.
2. Lift the seat cushion.
Courtesy of FORD MOTOR COMPANY

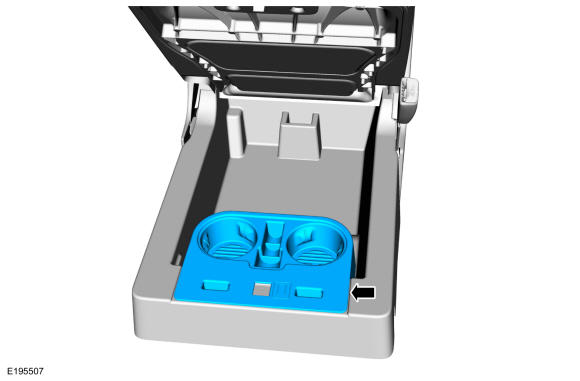

Remove the cup holder.

Courtesy of FORD MOTOR COMPANY

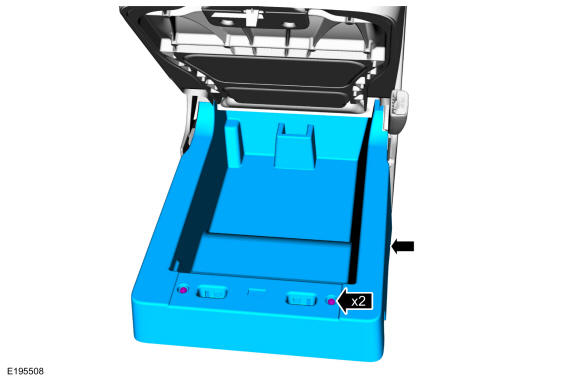

Remove screws and the seat storage tray.

Courtesy of FORD MOTOR COMPANY

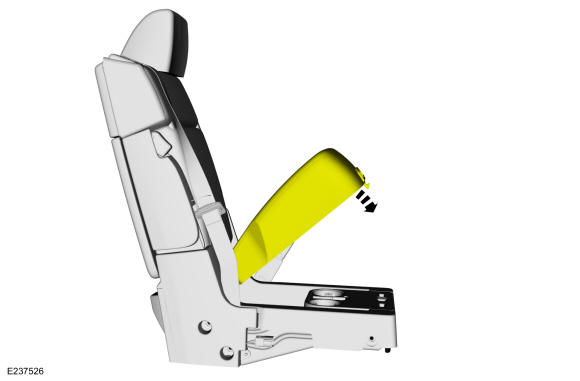

Lower the seat cushion.

Courtesy of FORD MOTOR COMPANY
Release the seat latch and fold the seat backrest down.

Courtesy of FORD MOTOR COMPANY
Remove the head restraint guide sleeves. Refer to: Front Head Restraint Guide Sleeve .
Remove the rear cup holder assembly.
1. Release the rear cup holder assembly retainers.
2. Disconnect the auxiliary power point electrical connector.
Courtesy of FORD MOTOR COMPANY
If equipped. Position the armrest storage compartment lid up.

Courtesy of FORD MOTOR COMPANY
Remove the backrest latch cover.

Courtesy of FORD MOTOR COMPANY
If equipped. Position the armrest storage compartment lid down.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the retaining clip and remove the RH side shields.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the retaining clips and remove the LH side shield.

Courtesy of FORD MOTOR COMPANY

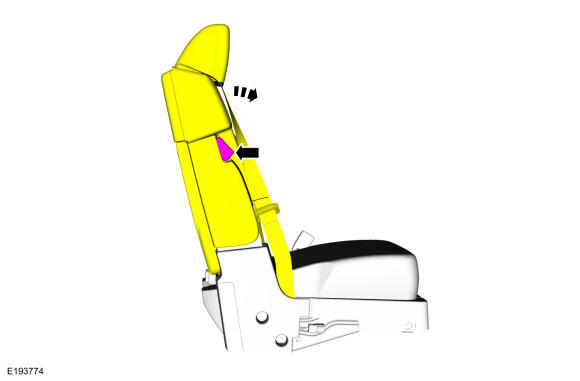

Release the seat latch and raise the seat backrest up.

Courtesy of FORD MOTOR COMPANY

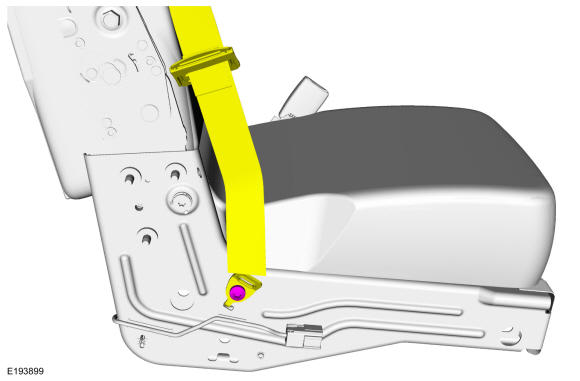

Remove the seatbelt anchor bolt.
Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the backrest.
1. Remove the stop bolt.
  Torque: 22 lb.ft (30 Nm)
2. Remove the pivot bolt.
  Torque: 33 lb.ft (45 Nm)
3. Remove the backrest latch upper bolts.
  Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
