Side Parking Aid Camera: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exterior mirror. Refer to: Exterior Mirror .
  2. Remove the exterior mirror weather shield.

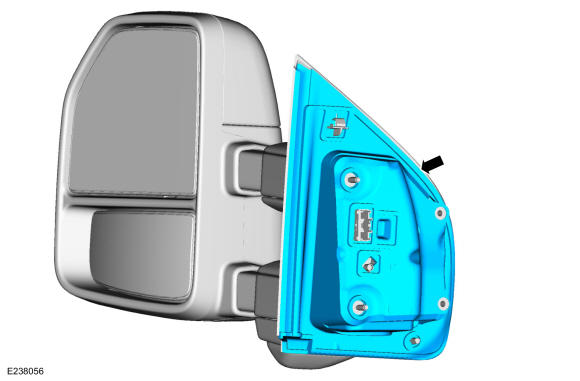

    GFD205840Courtesy of FORD MOTOR COMPANY
    1. Using a suitable tool, release the locking tabs.
    2. Position the inside edge of the cover.
    3. Remove the side parking aid camera cover.

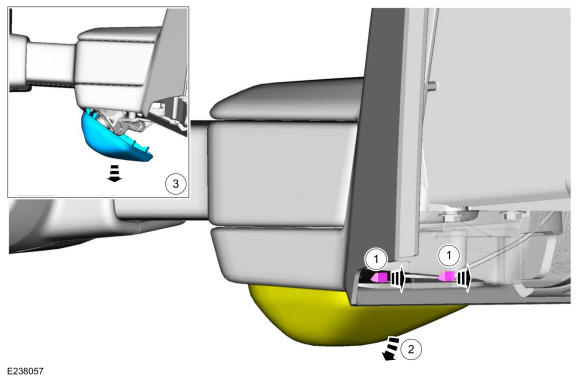

    GFD205841Courtesy of FORD MOTOR COMPANY
  4. Remove the side parking aid camera assembly.

    1. Remove the screws.
    2. Disconnect the connector.

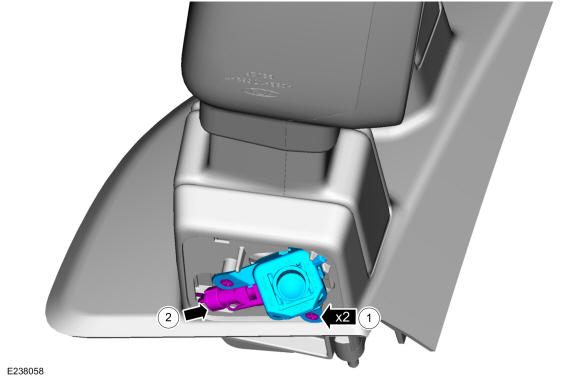

    GFD205842Courtesy of FORD MOTOR COMPANY
  5. Release the locking tabs and remove the upper camera bracket.

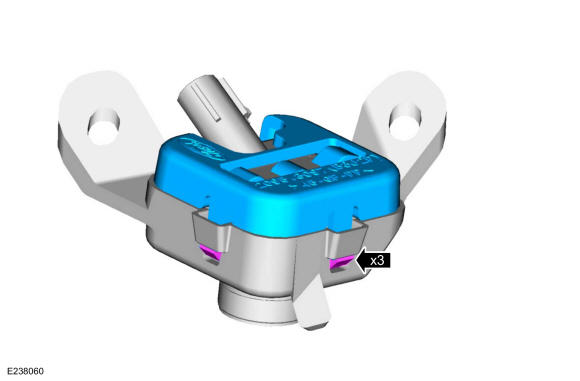

    GFD205843Courtesy of FORD MOTOR COMPANY

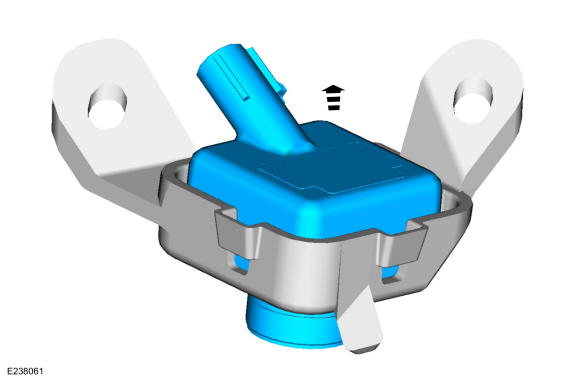

  6. Remove the side parking aid camera.
GFD205844Courtesy of FORD MOTOR COMPANY
