Rear Parking Aid Camera: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Rear view cameras located in tailgate release handle
NOTE:
Coaxial camera network camera shown, non-coaxial camera is similar.
- Remove the tailgate release handle. Refer to: Tailgate Release Handle .
- Disconnect the camera connector.
- Remove the screw and the camera bracket.
- Remove the rear view camera.
Center high mounted stop lamp (CHMSL) mounted camera
- Remove the center high mounted stop lamp (CHMSL). Refer to: High Mounted Stoplamp .

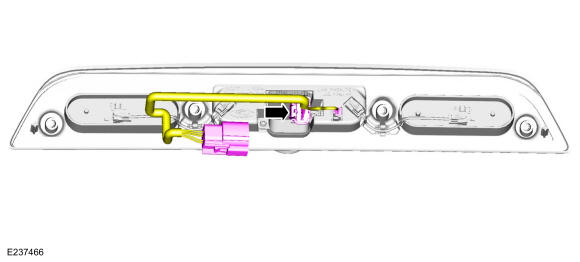

- Disconnect the CHMSL mounted camera electrical connector.

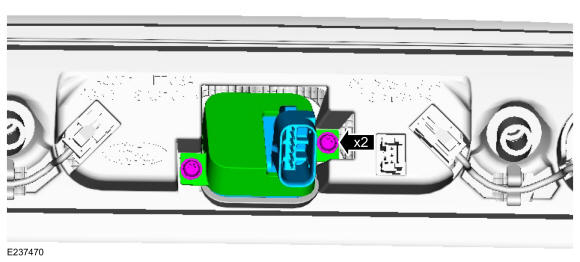

- Remove the screws, the camera bracket and the CHMSL mounted camera.
