Image Processing Module B (IPMB): Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
-
NOTE: If installing a new IPMB, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new IPMB after installation.
Using a diagnostic scan tool, begin the PMI process for the IPMB following the onscreen instructions.
- Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) - Vehicles With: SYNC
. Refer to: Front Controls Interface Module (FCIM) - Vehicles With: Sony Audio System
.

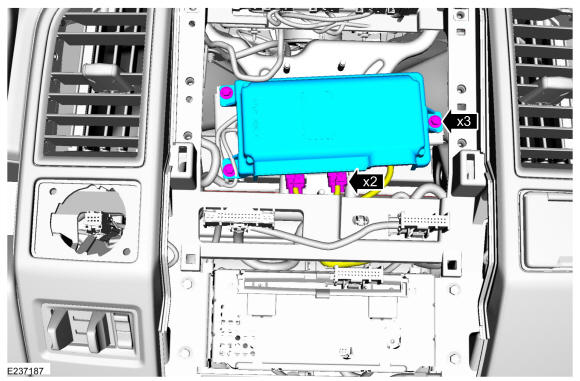

Vehicles not equipped with coaxial camera network
- Remove the nuts, disconnect the electrical connectors and remove the IPMB.

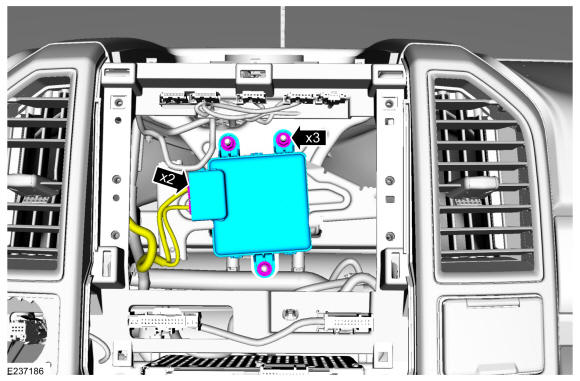

Vehicles equipped with coaxial camera network
- Remove the bolts, disconnect the electrical connectors and remove the IPMB.
