Front Parking Aid Camera: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator grille. Refer to: Radiator Grille .

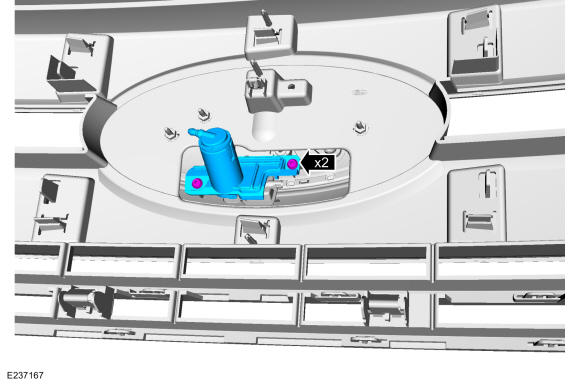

  2. Remove the screws and the front camera bracket.
    GFD205830Courtesy of FORD MOTOR COMPANY
  3. Remove the front parking aid camera.
GFD205831Courtesy of FORD MOTOR COMPANY
