Accessory Drive - Component Location
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

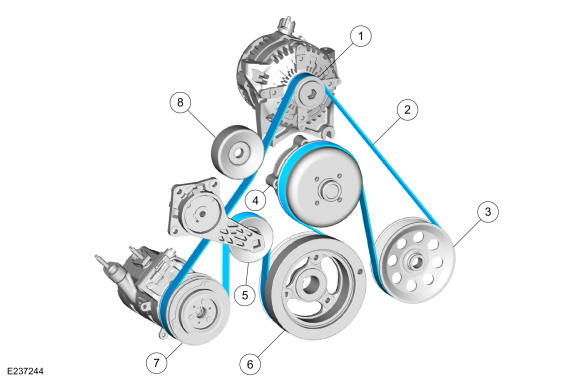

Accessory Drive Belt Routing - With A/C Compressor
| Item | Description |
|---|---|
| 1 | Generator pulley |
| 2 | Accessory drive belt |
| 3 | Power steering pump pulley |
| 4 | Coolant pump pulley |
| 5 | Drive belt tensioner pulley |
| 6 | Crankshaft belt pulley |
| 7 | A/C Clutch pulley |
| 8 | Accessory drive belt idler pulley |

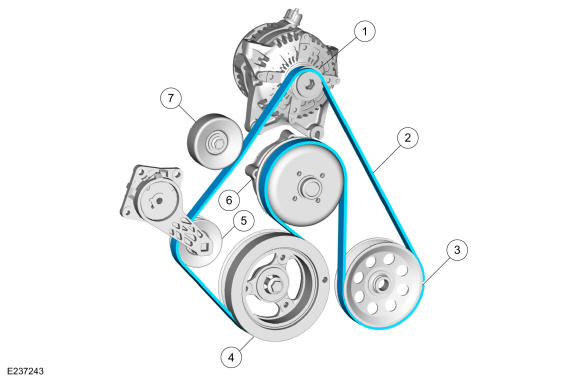

Accessory Drive Belt Routing - Without A/C Compressor
| Item | Description |
|---|---|
| 1 | Generator pulley |
| 2 | Accessory drive belt |
| 3 | Power steering pump pulley |
| 4 | Crankshaft belt pulley |
| 5 | Drive belt tensioner pulley |
| 6 | Coolant pump pulley |
| 7 | Accessory drive belt idler pulley |
