Throttle Body: Removal

WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
    • Disconnect the electrical connector and then detach the wire harness retainer.

    • Release the CAC (charge air cooler) outlet tube retaining clip, then disconnect the CAC (charge air cooler) outlet tube from the TB (throttle body) and position the CAC (charge air cooler) outlet tube out of the way.

    GFD203609Courtesy of FORD MOTOR COMPANY
  2. Disconnect the TB (throttle body) electrical connector.
    GFD203610Courtesy of FORD MOTOR COMPANY

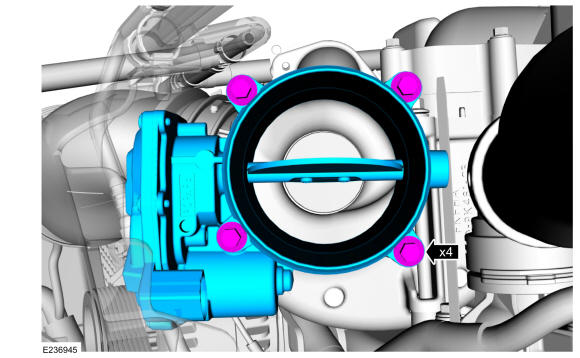

  3. Remove the TB (throttle body) retaining bolts and then remove the TB (throttle body).
    GFD203611Courtesy of FORD MOTOR COMPANY

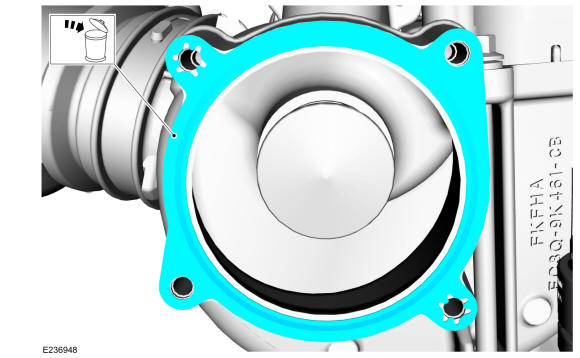

  4. Remove and discard the TB (throttle body) gasket.
GFD203612Courtesy of FORD MOTOR COMPANY
