Throttle Body: Installation

WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that the mating faces are clean and free of foreign material.

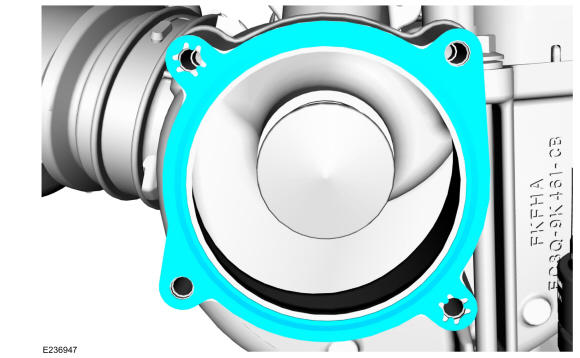

Install the new TB (throttle body) gasket.

Courtesy of FORD MOTOR COMPANY
Install the TB (throttle body), then install and tighten the TB (throttle body) retaining bolts in the following stages and in the sequence shown in illustration.
Torque

Stage 1: 89 lb.in (10 Nm)

Stage 2: Tighten an additional : 45°

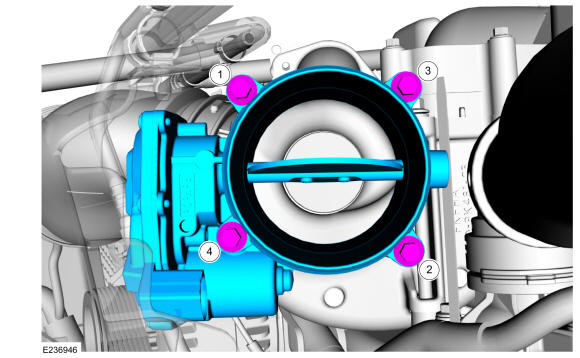

Fig 1: Throttle Body Tightening Sequence
Courtesy of FORD MOTOR COMPANY

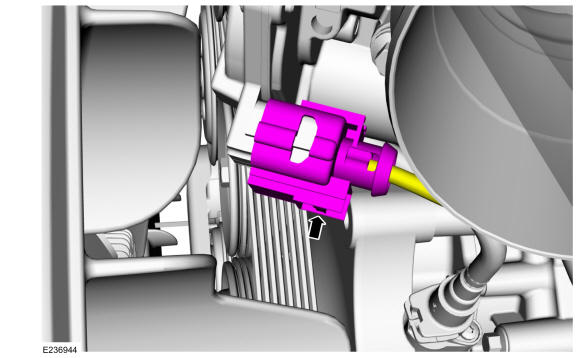

Connect the TB (throttle body) electrical connector.

Courtesy of FORD MOTOR COMPANY

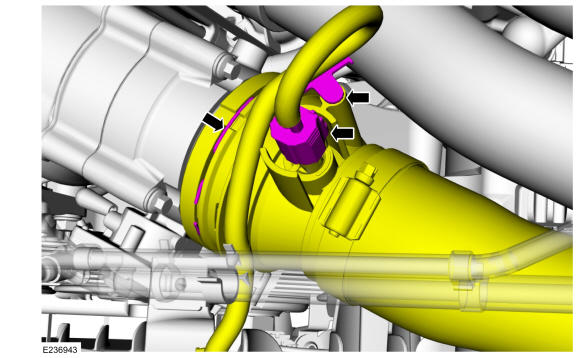

- Connect the CAC (charge air cooler) outlet tube to the TB (throttle body).
- Connect the electrical connector and then attach the wire harness retainer.
Courtesy of FORD MOTOR COMPANY
Perform the PCM adaptive value reset for the TB (throttle body).
- Turn the ignition key ON without cranking the engine.
- Turn the ignition key OFF.
- Wait 30 seconds for the PCM to reset the adaptive values for the TB (throttle body).
- Start the engine.
NOTE: This step is required only when a new throttle body is being installed.

After the new throttle body is installed, using a diagnostic scan tool, perform the following:
- Reset/clear the specified function for the EGR throttle.
  Use the General Equipment: Worldwide Diagnostic System (WDS)
- Clear the continuous PCM DTCs and reset the emissions monitors information in the PCM. Refer to Engine Controls - Powertrain DTC Charts & Descriptions (Diesel) .
  Use the General Equipment: Worldwide Diagnostic System (WDS)
