Fuel Rail: Installation
WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Left side
-
NOTE: The fuel rail bolts will be tightened in the fuel injector supply tube procedure.

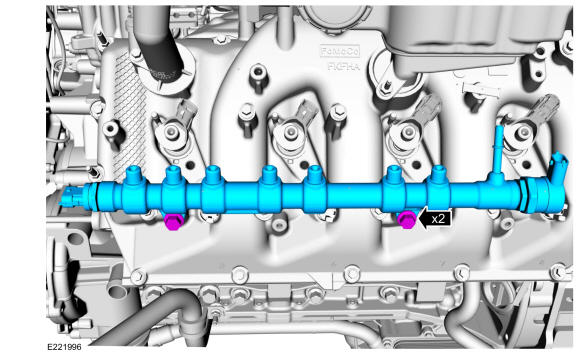

Install the left fuel rail. Hand start the left fuel rail bolts at this stage.
- For fuel rail pressure (FRP) Sensor or fuel pressure control valve servicing see: Refer to: Fuel Rail Pressure (FRP) Sensor . Refer to: Fuel Pressure Control Valve .
- Connect the fuel rail pressure sensor electrical connector at the front of the left fuel rail.
- Install the left fuel injector supply tubes. Refer to: Fuel Injector Supply Tube .

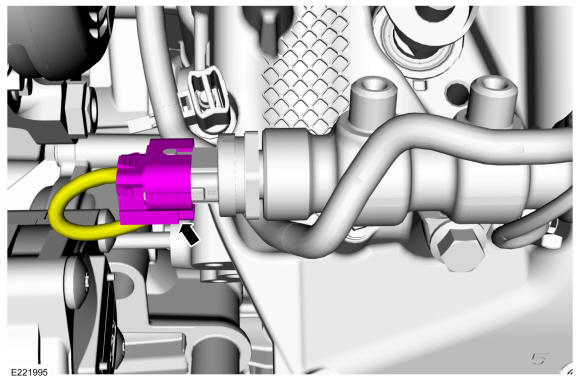

- Connect the fuel rail to fuel injection pump return tube spring lock coupling to the rear of the left fuel rail, then install the clip. Refer to: Spring Lock Couplings
.
Right side
-
NOTE: The fuel rail bolts will be tightened in the fuel injector supply tube procedure.

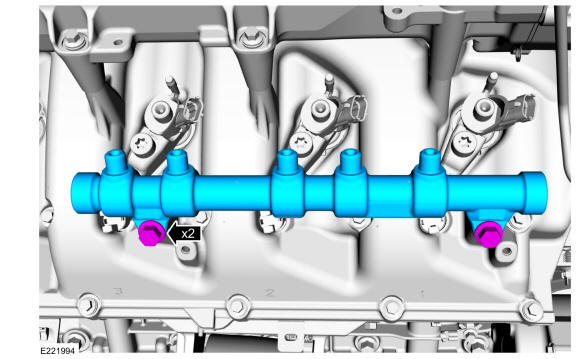

Install the right fuel rail. Hand start the right fuel rail bolts at this stage.
- Install the right fuel injector supply tubes. Refer to: Fuel Injector Supply Tube .
Both sides
- Install the fuel rail supply tube assembly. Refer to: Fuel Rail Supply Tube .
