Fuel Pump Driver Module (FPDM): Installation
WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Pickup

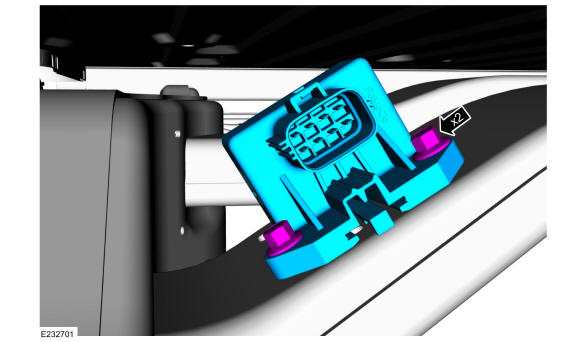

- Install the fuel pump driver module (FPDM), then install and tighten the fuel pump driver module (FPDM) retainers.
Torque
: 71 lb.in (8 Nm)

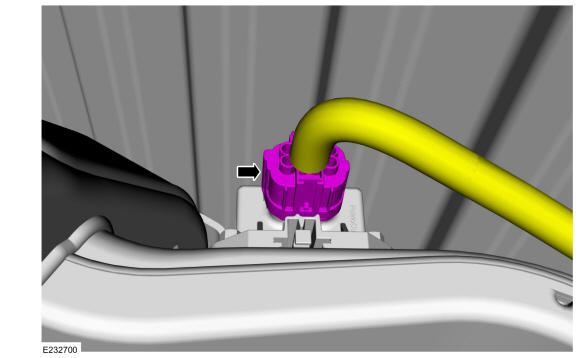

- Connect the fuel pump driver module (FPDM) electrical connector.
Chassis Cab

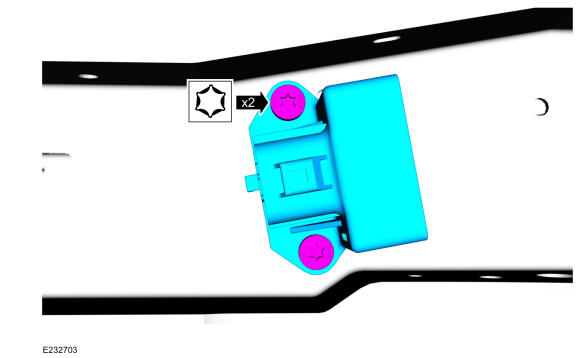

- Install the fuel pump driver module, then install and tighten the fuel pump driver module retainers.
Torque
: 71 lb.in (8 Nm)

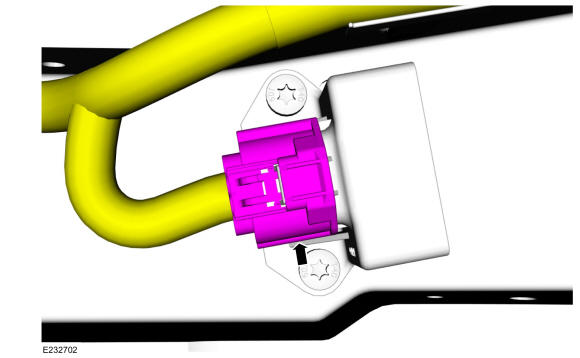

- Connect the fuel pump driver module electrical connector.
