Fuel System 6.7L Power Stroke Diesel
WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

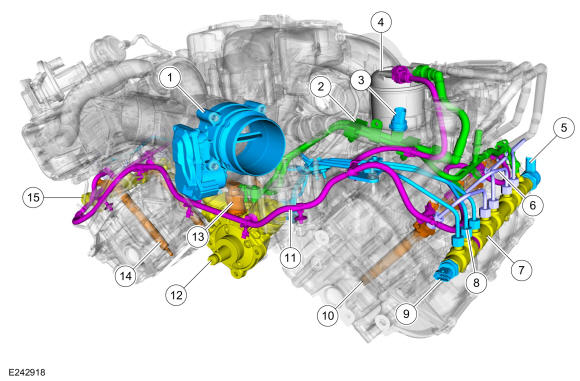

| Item | Description |
|---|---|
| 1 | Throttle Body |
| 2 | Fuel injection pump supply tube assembly |
| 3 | Fuel pressure and temperature sensor |
| 4 | Secondary fuel filter |
| 5 | Fuel pressure control valve |
| 6 | Fuel injector supply tube(s) |
| 7 | Left fuel rail |
| 8 | Fuel rail supply tube assembly |
| 9 | Fuel Rail Pressure sensor |
| 10 | Left fuel injector(s) |
| 11 | Fuel injector fuel return line |
| 12 | Fuel injection pump |
| 13 | Fuel volume control valve |
| 14 | Right fuel injector(s) |
| 15 | Right fuel rail |
