Section 86 (Engine Controls - Fuel Charging And Controls - 6.7L Power Stroke Diesel)
>>
Description And Operation
>>
Fuel Charging and Controls - Component Location
>>

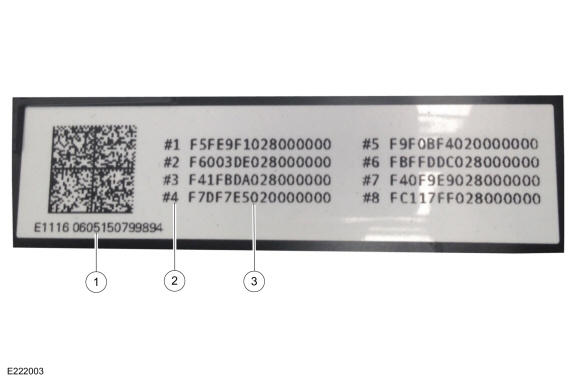

Fuel Injector IQA Label 6.7L Power Stroke Diesel
Fuel Injector IQA Label 6.7L Power Stroke Diesel
WARNING:
This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Engine serial number
2
Cylinder number location
3
Fuel injector IQA (injector quantity adjustment) code
