Rear Bumper: Disassembly

WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The disassembly procedure may contain assembly details.

Remove the rear bumper. Refer to: Rear Bumper .
Disconnect the rear bumper wiring harness electrical connectors.

Courtesy of FORD MOTOR COMPANY

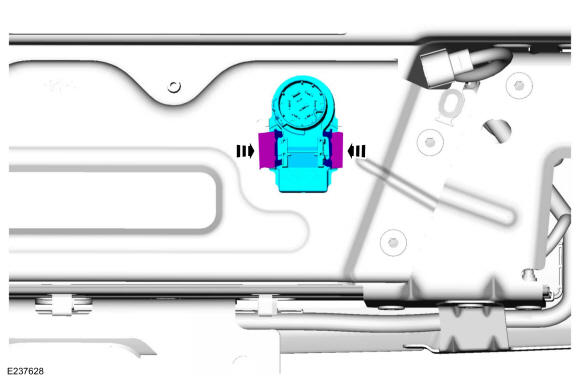

Release the tabs and remove the trailer connector.

Courtesy of FORD MOTOR COMPANY
Remove the push pin, the bolts and the rear bumper center bracket.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

Remove the bolts and the outer reinforcement.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Release the wire harness guides and remove the wiring harness.

Courtesy of FORD MOTOR COMPANY
Remove the pin-type retainers and the bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

Release the tabs and remove the license plate lamps.

Courtesy of FORD MOTOR COMPANY
Remove the rear parking aid sensors.
1. Release the tabs.
2. Remove the sensor from the bracket.
Courtesy of FORD MOTOR COMPANY

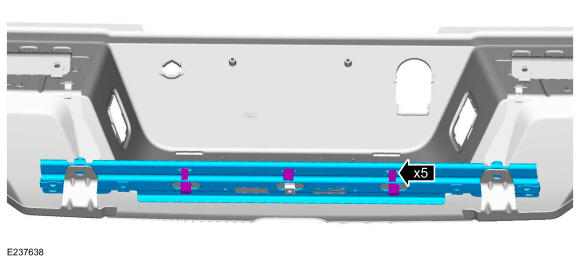

Release the tabs and remove the lower support.

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

Release the tabs and remove the outer bumper arm assemblies.

Courtesy of FORD MOTOR COMPANY
NOTE: On both outer bumper arms.

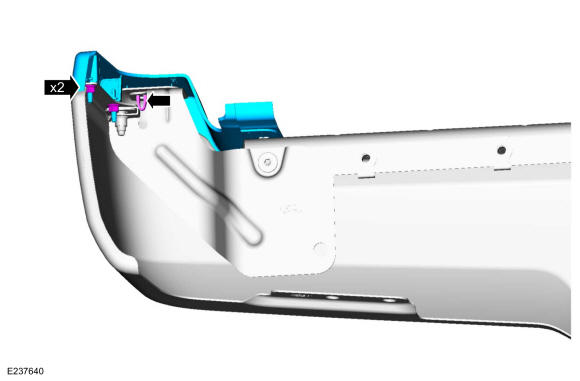

Remove the nuts, release the tab and remove the outer bumper arm cover.

Courtesy of FORD MOTOR COMPANY
NOTE: On both outer bumper arms.

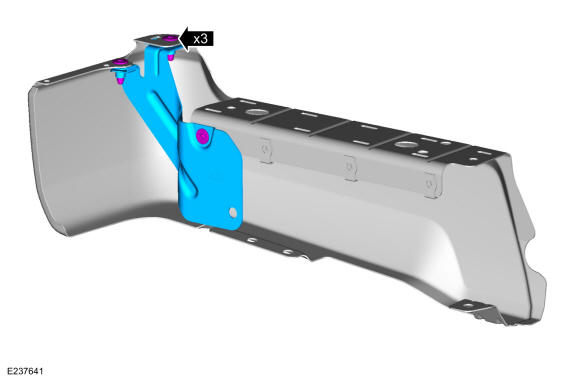

Remove the bolts and the outer bumper arm brace.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
