Pickup Bed: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Pickup bed bolts are a one-use bolt. They must be replaced when removed or loosened.

NOTE: Diesel 8.0 foot pickup bed shown, all others similar.

NOTE: Spare tire removed for clarity.

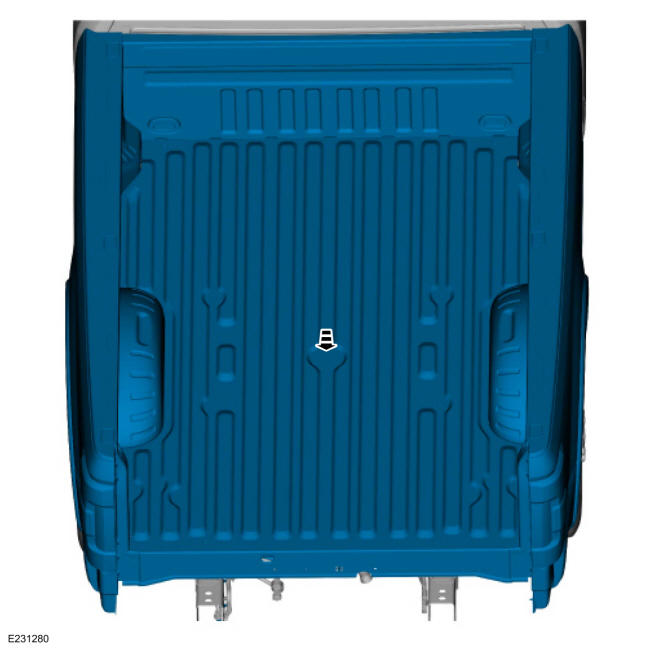

Carefully install and properly position the pickup bed.

Courtesy of FORD MOTOR COMPANY

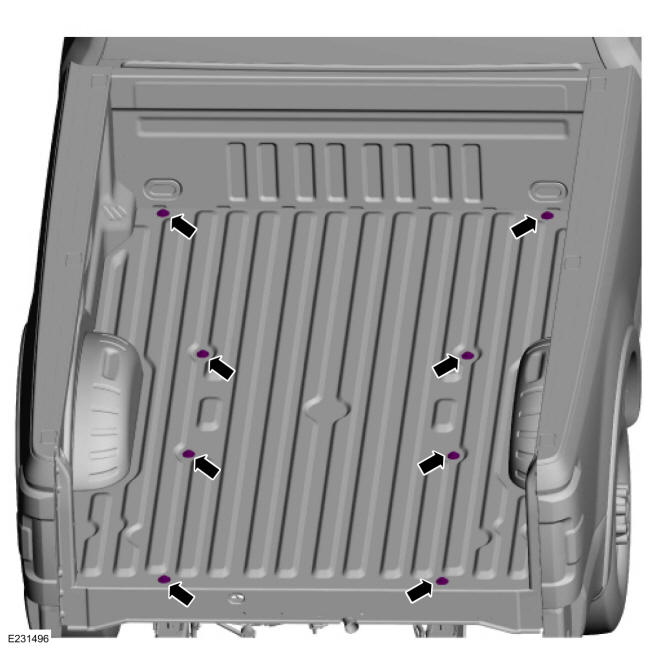

NOTE: Bed bolt installation requires the use of an external Torx Plus ® 24EP or 24EPL socket.

Install new fasteners.

Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY

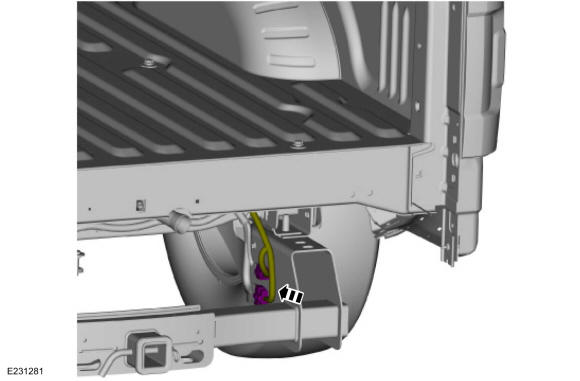

Reposition the wiring harness, install retainers and connect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

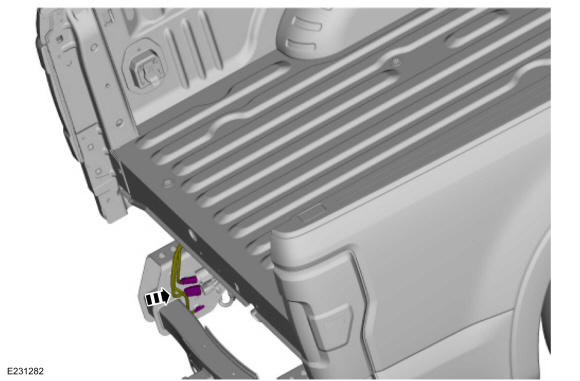

Reposition the wiring harness, install retainers and connect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

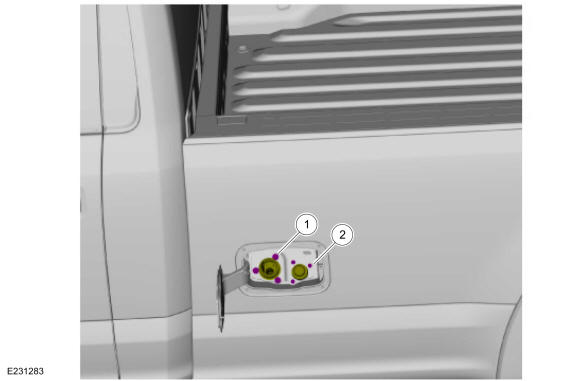

Reposition the filler pipe(s) and install the fasteners.
1. Fuel filler pipe
  Torque: 44 lb.in (5.0 Nm)
2. Urea filler pipe.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY
Install the rear bumper. Refer to: Rear Bumper .
If equipped, install the pickup bed liner.
Install the tailgate.
Check the vehicle exterior lighting for proper operation.
