Removal And Installation: Fender: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown, RH side similar.
NOTE:
Wheels remove for clarity.

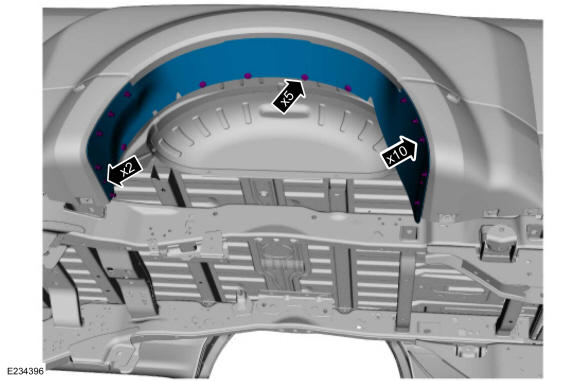

- Remove the retainers and fender splash shield.

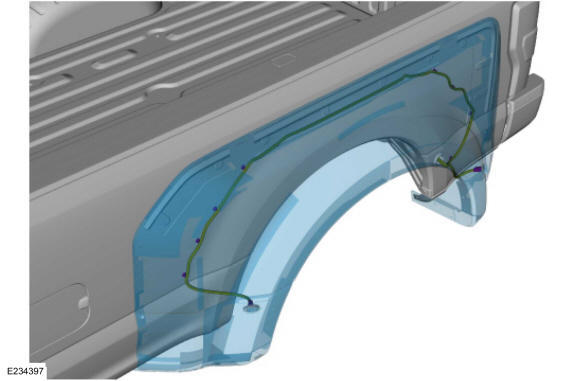

- Disconnect the marker light connectors and position aside the wiring harness.
-
NOTE: Pay particular attention to fastener locations to aid in installation.

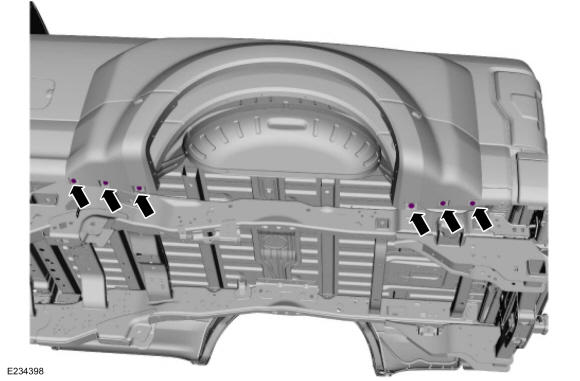

Remove the lower fender fasteners.
- Remove the fender bracket bolts.
- Remove the nuts from the back side of the pickup box panel and remove the retainer clips.

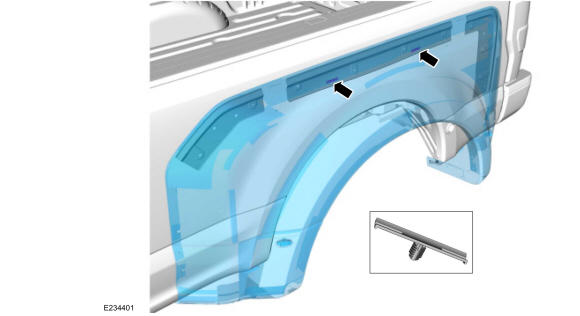

- Remove the pushpin retainers.

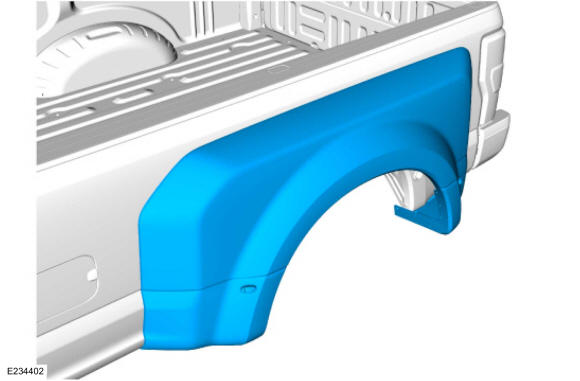

- Remove the fender.
