Power Steering Fluid Cooler: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: While repairing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may result.

NOTE: Removal steps in this procedure may contain installation details.

Remove the radiator grille. Refer to: Radiator Grille .
NOTE: Make sure the area is clean and free of foreign material before disconnecting the power steering hoses.

NOTE: Make sure that all openings are sealed.

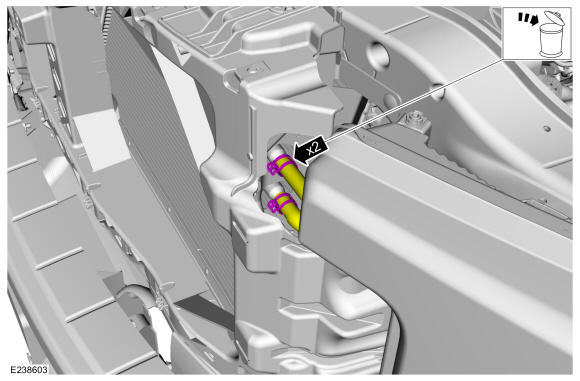

Release the clamps and disconnect the hoses. Discard the clamps.

Courtesy of FORD MOTOR COMPANY

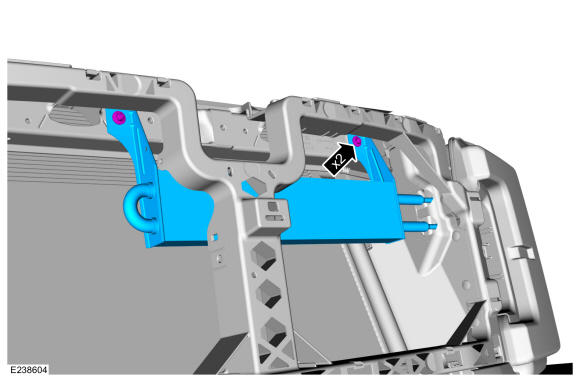

Remove the bolts and the power steering fluid cooler.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
