Tie Rod End: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: F-250/F-350 RWD shown in illustration, other applications similar.

Remove the wheel and tire. Refer to: Wheel and Tire - Vehicles With: Single Rear Wheels . Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .

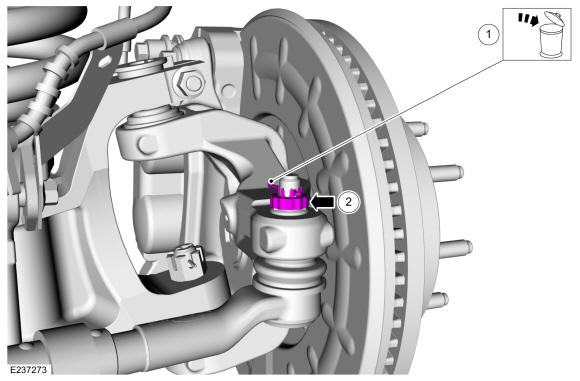

1. Remove and discard the tie rod end cotter pin.
2. Remove the tie rod end nut retainer.
Courtesy of FORD MOTOR COMPANY

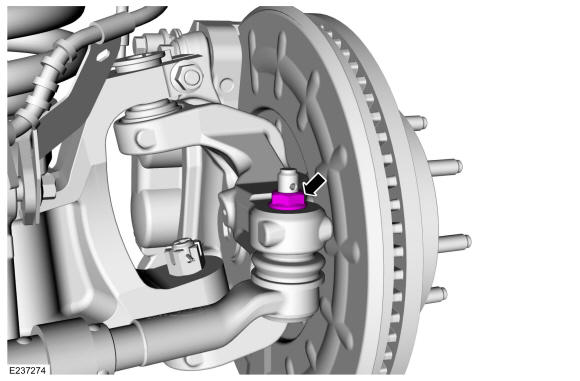

Remove the tie rod end nut.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

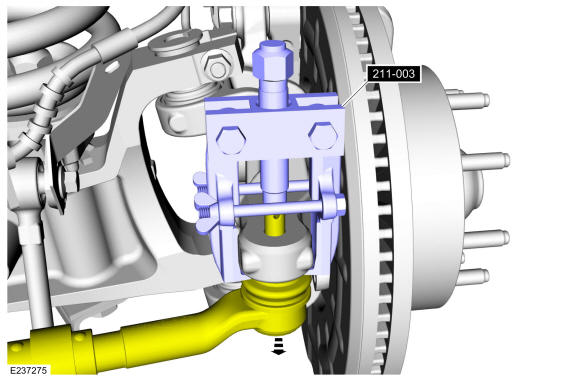

Separate the tie-rod end from the wheel spindle assembly.
Use Special Service Tool: 211-003 (T64P-3590-F) Remover, Steering Arm.

Courtesy of FORD MOTOR COMPANY

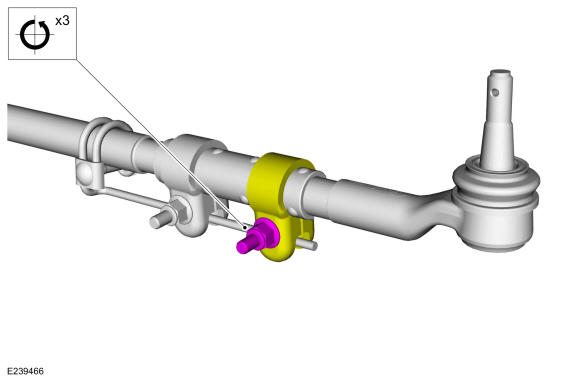

Loosen the tie rod adjuster sleeve nut.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

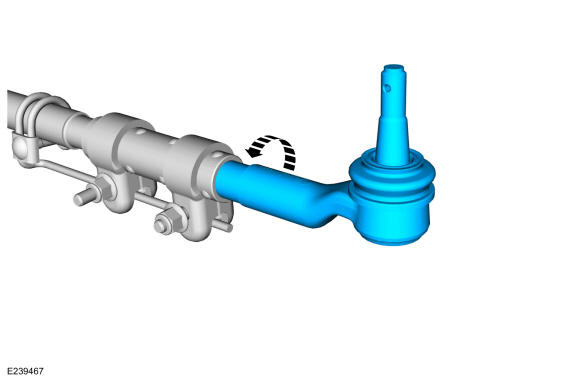

NOTE: Count and record the number of turns required to remove the outer tie-rod end for reference during installation.

Remove the tie rod end.
