Sector Shaft Arm: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: RWD sector shaft arm shown in illustration. 4WD Similar.

Hold the steering wheel in the straight-ahead position.
Use the General Equipment: Steering Wheel Holder

Courtesy of FORD MOTOR COMPANY
Position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

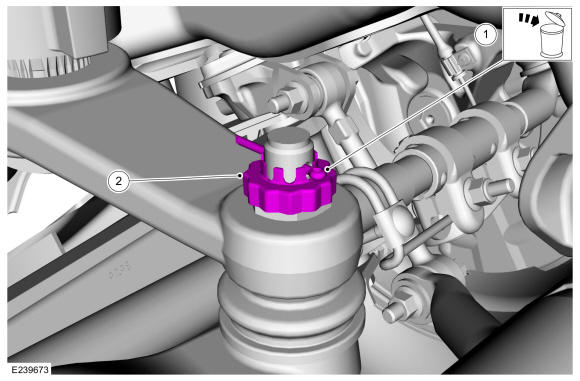

1. Remove and discard the sector shaft arm drag link cotter pin.
2. Remove and discard the sector shaft arm drag link nut retainer.
Courtesy of FORD MOTOR COMPANY

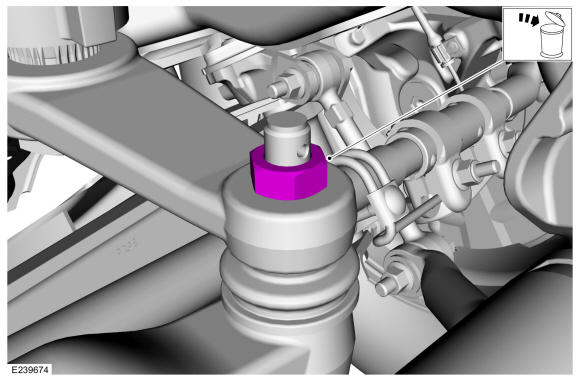

Remove and discard the sector shaft arm drag link nut.
Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY

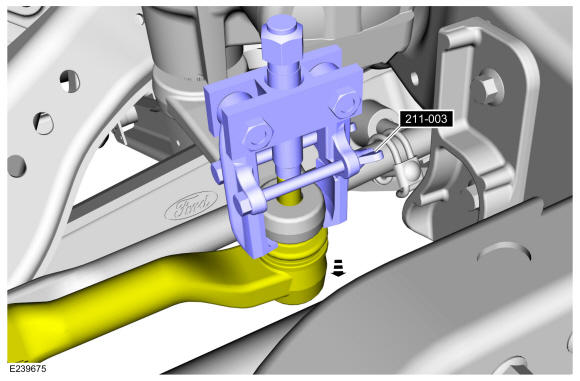

Separate the sector shaft arm drag link from the sector shaft arm.
Use Special Service Tool: 211-003 (T64P-3590-F) Remover, Steering Arm.

Courtesy of FORD MOTOR COMPANY

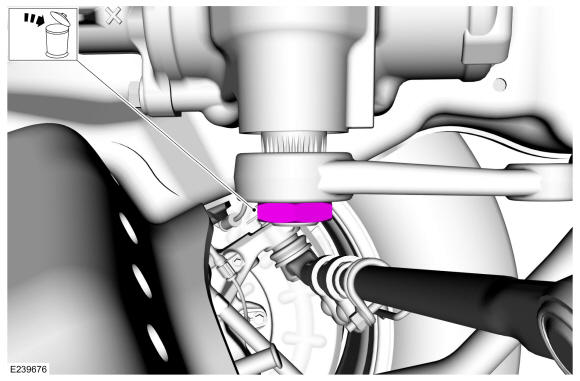

Remove and discard the sector shaft arm nut.
Torque: 350 lb.ft (475 Nm)

Courtesy of FORD MOTOR COMPANY

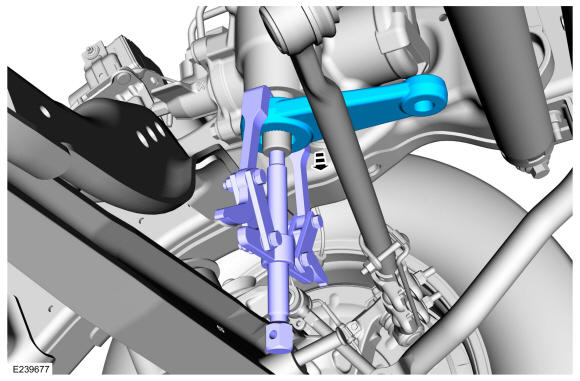

Remove the sector shaft arm.
Use the General Equipment: Two Leg Puller

Courtesy of FORD MOTOR COMPANY
