Sector Shaft Arm Drag Link - F-450 F-550: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tires. Refer to: Wheel and Tire - Vehicles With: Single Rear Wheels . Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .
NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nut.

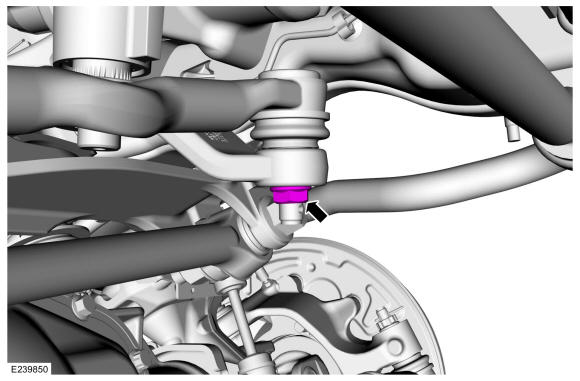

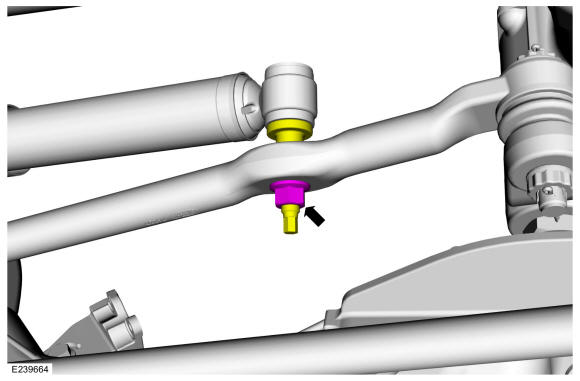

Remove the steering linkage damper-to-sector shaft arm drag link nut.

Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
Separate the steering linkage damper from the sector shaft arm drag link.
Use Special Service Tool: 211-003 (T64P-3590-F) Remover, Steering Arm.

Courtesy of FORD MOTOR COMPANY
1. Remove and discard the sector shaft arm drag link cotter pin.
2. Remove the sector shaft arm drag link nut retainer.
Courtesy of FORD MOTOR COMPANY

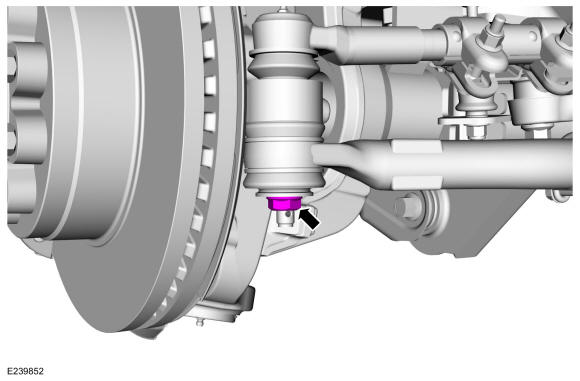

Remove the sector shaft arm drag link nut.
Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY

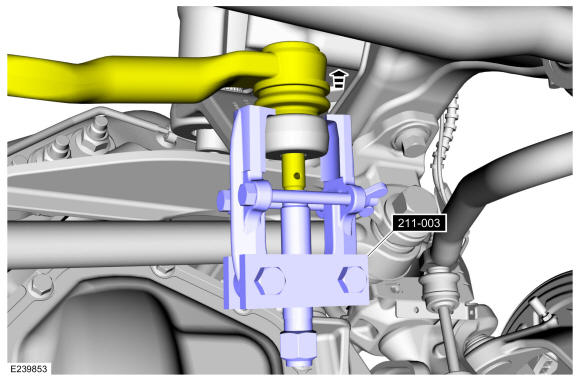

Separate the sector shaft arm drag link from the sector shaft arm.
Use Special Service Tool: 211-003 (T64P-3590-F) Remover, Steering Arm.

Courtesy of FORD MOTOR COMPANY
1. Remove and discard the sector shaft arm drag link cotter pin.
2. Remove the sector shaft arm drag link nut retainer.
Courtesy of FORD MOTOR COMPANY
Remove the sector shaft arm drag link and tie rod nut.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Separate the sector shaft arm drag link from the wheel knuckle and tie rod. Support the tie rod.
Use Special Service Tool: 211-023 (T74P-3044-A1) C-Frame and Screw.

Courtesy of FORD MOTOR COMPANY
