Sector Shaft Arm Drag Link - F-250 F-350: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

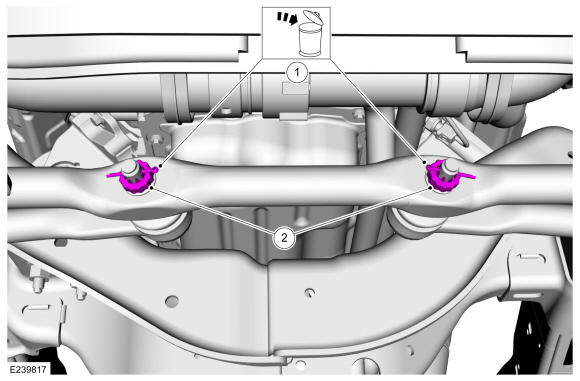

1. Remove and discard the tie rod cotter pins.
2. Remove the tie rod nut retainers.
Courtesy of FORD MOTOR COMPANY

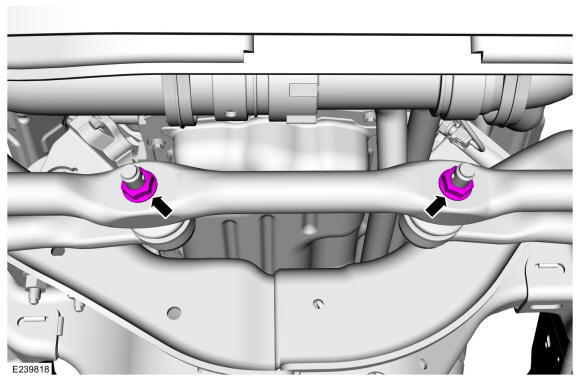

Remove the tie rod nuts.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

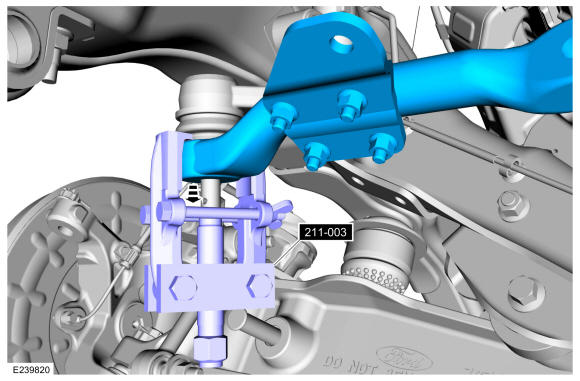

On both sides. Separate the tie rod from the sector shaft arm drag link.
Use Special Service Tool: 211-003 (T64P-3590-F) Remover, Steering Arm.

Courtesy of FORD MOTOR COMPANY
1. Remove and discard the sector shaft arm drag link cotter pin.
2. Remove and discard the sector shaft arm drag link nut retainer.
Courtesy of FORD MOTOR COMPANY
Remove and discard the sector shaft arm drag link nut.
Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY

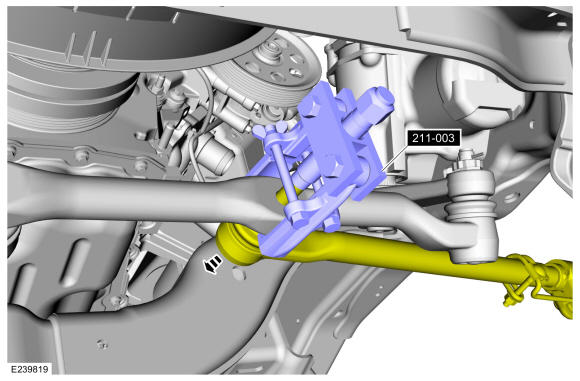

Separate the sector shaft arm drag link from the sector shaft arm.
Use Special Service Tool: 211-003 (T64P-3590-F) Remover, Steering Arm.

Courtesy of FORD MOTOR COMPANY
Separate the sector shaft arm drag link from the idler arm and remove the sector shaft arm drag link.
Use Special Service Tool: 211-003 (T64P-3590-F) Remover, Steering Arm.

Courtesy of FORD MOTOR COMPANY
