Idler Arm and Bracket: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

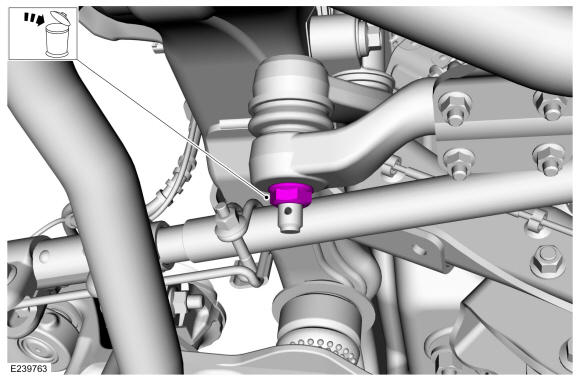

1. Remove and discard the idler arm cotter pin.

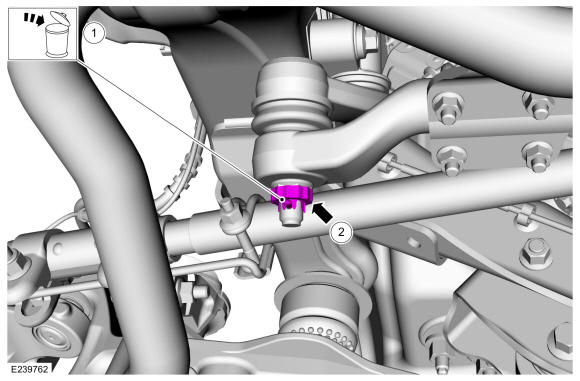

2. Remove the idler arm nut retainer.
Courtesy of FORD MOTOR COMPANY
Remove the idler arm nut.

Courtesy of FORD MOTOR COMPANY

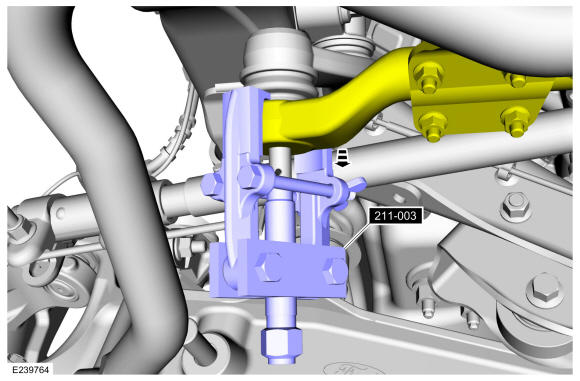

Separate the sector shaft arm drag link from the idler arm.
Use Special Service Tool: 211-003 (T64P-3590-F) Remover, Steering Arm.

Courtesy of FORD MOTOR COMPANY

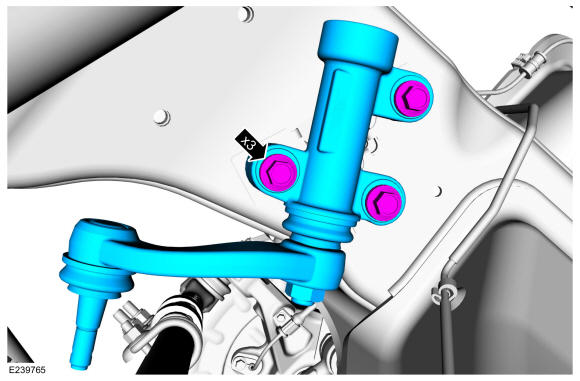

Remove the idler arm bolts and remove the idler arm.
Torque: 76 lb.ft (103 Nm)
