Pinpoint Tests WA: Exhaust Gas RECIRCULATION Temperature (EGRT) Sensor: Introduction

WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: EGRT11, EGRT12, and SIGRTN
EGRT11 and EGRT12 sensors
PCM (12A650)

Fig 1: Exhaust Gas Recirculation Temperature Bank 1, Sensor 1 (EGRT11) Sensor Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
EGRT11 (Exhaust Gas Recirculation Temperature Bank 1, Sensor 1)	1
SIGRTN (Signal Return)	2

Fig 2: Exhaust Gas Recirculation Temperature Bank 1, Sensor 2 (EGRT12) Sensor Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
EGRT12 (Exhaust Gas Recirculation Temperature Bank 1, Sensor 2)	1
SIGRTN (Signal Return)	2

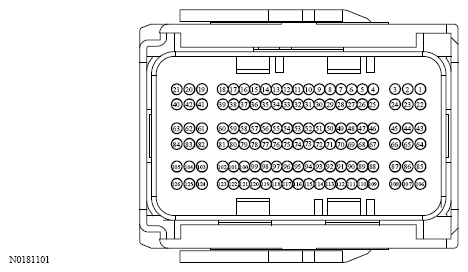

Fig 3: Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
EGRT11 (Exhaust Gas Recirculation Temperature Bank 1, Sensor 1)	101
SIGRTN (Signal Return)	99
EGRT12 (Exhaust Gas Recirculation Temperature Bank 1, Sensor 2)	78

Fig 4: Powertrain Control Module-T (PCM-T) Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit
