Pinpoint Tests RF: REDUCTANT Pressure Sensor: Introduction
WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
- reductant pressure sensor
- harness circuits: RDP, VREF, and SIGRTN
- reductant dosage control module (5H298)
- PCM (12A650)
Harness Side
| Circuit | Pin |
|---|---|
| RDP (Reductant Pressure) | 4 |
| VREF (Reference Voltage) | 5 |
| SIGRTN (Signal Return) | 3 |
Harness Side
| Circuit | Pin |
|---|---|
| RDP (Reductant Pressure) | 72 |

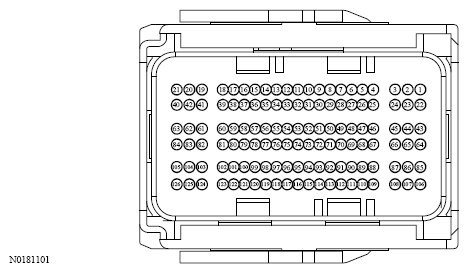

Harness Side
| Circuit | Pin |
|---|---|
| RDP (Reductant Pressure) | 40 |
| VREF (Reference Voltage) | 68 |
| SIGRTN (Signal Return) | 55 |
