Pinpoint Tests Me: Fuel Pump Control: Introduction
WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Contact with exposed fuel injector wiring, if energized, may result in electric shock. Use care when working on or around energized fuel injector wiring. Fuel injector wiring supplies high voltage to operate the fuel injectors. Failure to follow this instruction may result in serious personal injury.
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
- harness circuits: FPCV, FVCV, VBPWR and VPWR
- fuel volume control valve (9J307)
- fuel pressure control valve (9C968)
- PCM (12A650)
Harness Side
| Circuit | Pin |
|---|---|
| VPWR (Vehicle Power) | 1 |
| FPCV (Fuel Pressure Control Valve) | 2 |
Harness Side
| Circuit | Pin |
|---|---|
| VPWR (Vehicle Power) | 1 |
| FVCV (Fuel Volume Control Valve) | 2 |

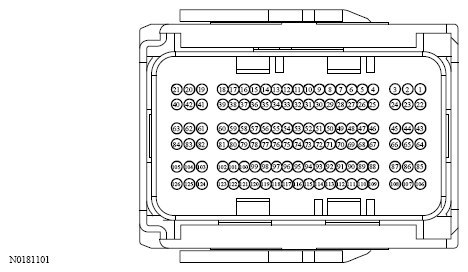

Harness Side
| Circuit | Pin |
|---|---|
| FVCV (Fuel Volume Control Valve) | 1 |
| FPCV (Fuel Pressure Control Valve) | 43 |
