Pinpoint Tests MC: Fuel Temperature Sensor: Introduction
WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
- FRT sensor (9F951)
- fuel pressure and temperature sensor
- harness circuits: FRT and SIGRTN
- PCM (12A650)
Harness Side
| Circuit | Pin |
|---|---|
| FRT (Fuel Rail Temperature) | 4 |
| SIGRTN (Signal Return) | 1 |

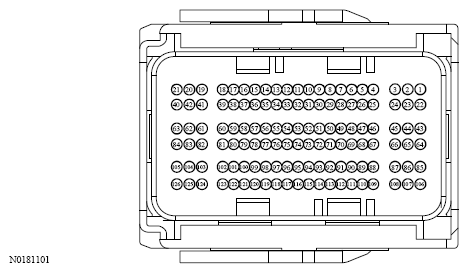

Harness Side
| Circuit | Pin |
|---|---|
| FRT (Fuel Rail Temperature) | 92 |
| SIGRTN (Signal Return) | 116 |
