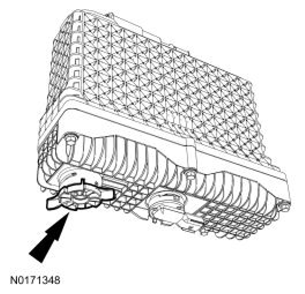

Typical Fuel Conditioning Module Drain Valve (All Others)
WARNING: This page is about a different car, the 2020 Ford F-550 Super Duty, 2020 Ford F-450 Super Duty, 2020 Ford F-350 Super Duty, 2020 Ford F-250 Super Duty, and 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Possible Causes:
- No fuel in the tank
- Fuel gelled
- Fuel quality
- Aeration
- Biodiesel-water separation, seal degradation, corrosion
- Restricted fuel filters
- Fuel supply line broken or crimped
- Corrosion to fuel system components
- Fuel pump (FP) assembly damaged (pressure regulator, pump, screen) (Transit)
- Pickup tube screen in tank restricted (all others)
Tools Required:
Clear container 0.95 L (1 quart)
