Rear Sliding Window Motor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: For non-functional rear sliding window motors, it may be necessary to cut the rear sliding window motor cables to allow window movement and cable removal.
  1. Remove the loadspace trim panel. Refer to: Loadspace Trim Panel - Crew Cab/Super Cab .
  2. NOTE: This step is for functional rear sliding window motors, it allow slack in both cables to aid in removal.
    NOTE: For non-functional rear sliding window motors, it may be necessary to cut the rear sliding window motor cables to allow window movement and cable removal.

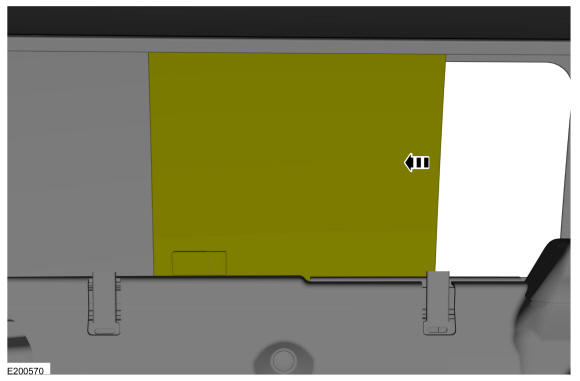

    Position the rear window glass sliding panel as shown.

    GFD206748Courtesy of FORD MOTOR COMPANY
  3. NOTE: The rear window glass sliding panel shown removed for clarity.

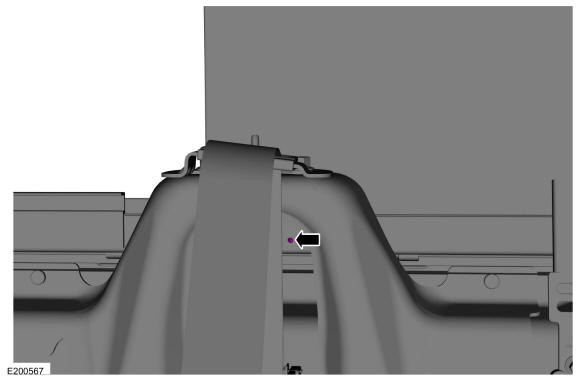

    Remove the rear window glass sliding panel left stop screw.

    GFD206749Courtesy of FORD MOTOR COMPANY
  4. Remove the rear window glass sliding panel right stop screw.
    GFD206750Courtesy of FORD MOTOR COMPANY
  5. NOTE: The rear window glass sliding panel shown removed for clarity.

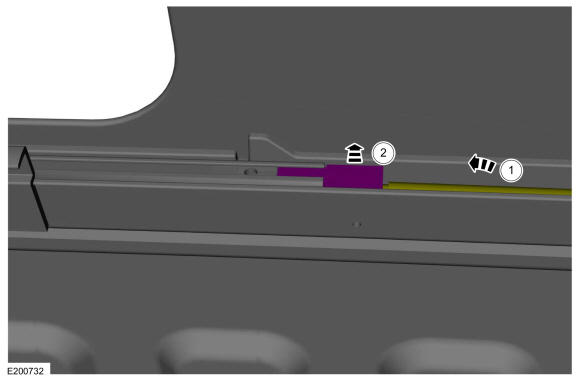

    Detach the rear window glass sliding panel left stop and cable.

    1. Pull the left cable to remove the stop from the rear window glass sliding rail.
    2. Detach the left window rail stop from the rear window glass sliding rail.

    GFD206751Courtesy of FORD MOTOR COMPANY

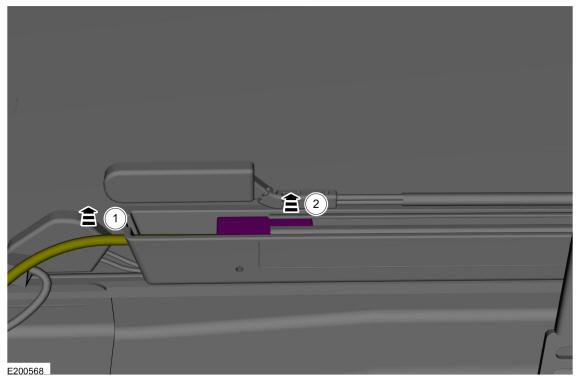

  6. Detach the rear window glass sliding panel right stop and cable.

    1. Pull the right cable to remove the stop from the rear window glass sliding rail.
    2. Detach the right window rail stop from the rear window glass sliding rail.

    GFD206752Courtesy of FORD MOTOR COMPANY

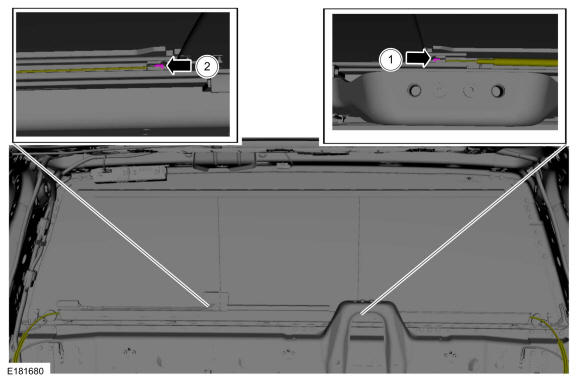

  7. Disconnect the rear sliding window motor cables.

    1. Disconnect the left rear sliding window motor cable.
    2. Disconnect the right rear sliding window motor cable.

    GFD206753Courtesy of FORD MOTOR COMPANY

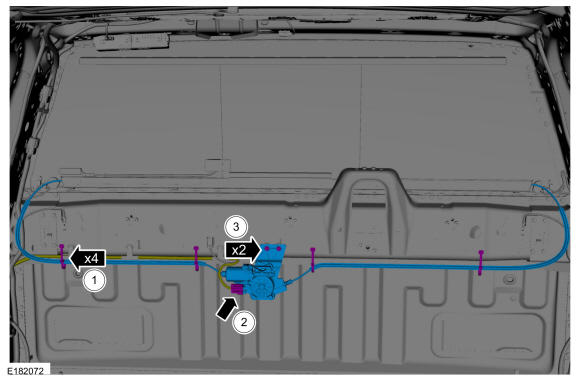

  8. Remove the rear sliding window motor.

    1. Detach the rear sliding window motor cable routing clips.
    2. Disconnect the rear sliding window motor electrical connector.
    3. Remove the rear sliding window motor bolts and the rear sliding window motor.

      Torque: 71 lb.in (8 Nm)
