Front Door Window Glass: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front door window regulator. Refer to: Front Door Window Regulator and Motor - Vehicles With: Front Power Windows . Refer to: Front Door Window Regulator - Vehicles With: Front Manual Windows .
  2. Lower the front door window glass.
    GFD206697Courtesy of FORD MOTOR COMPANY

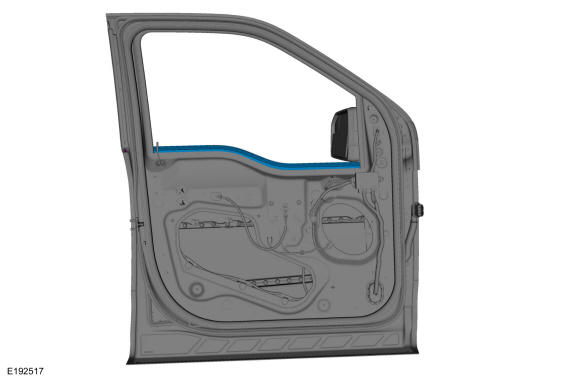

  3. Remove the inner belt moulding.
    GFD206693Courtesy of FORD MOTOR COMPANY
  4. Remove the front door glass top run.
    GFD206694Courtesy of FORD MOTOR COMPANY
  5. Remove the front door glass.
GFD206698Courtesy of FORD MOTOR COMPANY
