Seat Position Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Power seat shown, manual similar.

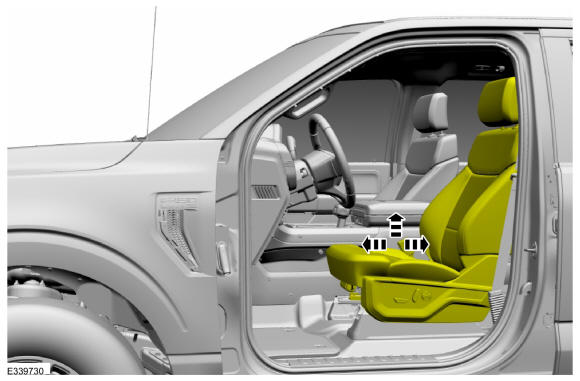

Position the driver seat to access the seat position sensor.

Courtesy of FORD MOTOR COMPANY

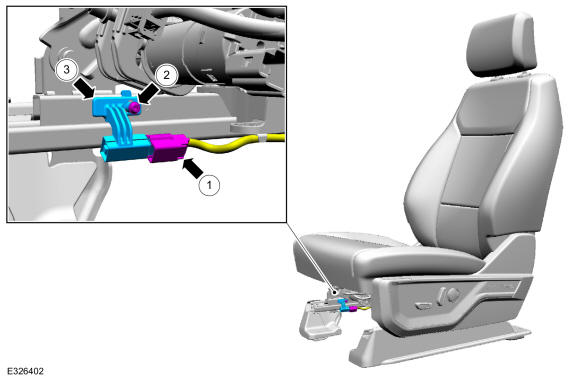

1. Disconnect the electrical connector.
2. Remove the screw.
  Torque: 8 lb.in (.9 Nm)
3. Remove the seat position sensor.

Courtesy of FORD MOTOR COMPANY
