Occupant Classification System (OCS) Sensor - Vehicles Without: Multi-Contour Seats: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE: To prevent system failure, carry out the OCS (occupant classification system) reset when a front passenger seat cushion is disassembled, a new trim cover or heater mat is installed or an OCS (occupant classification system) service kit is installed. Use a diagnostic scan tool to carry out the OCS (occupant classification system) reset command.
NOTE: OCS (occupant classification system) components (seat cushion foam, bladder with OCSM (occupant classification system module)) are calibrated to each other and are serviced as an assembly with an OCS (occupant classification system) service kit. If a new OCS (occupant classification system) or seat cushion foam are needed, a new OCS (occupant classification system) service kit must be installed. The heater mat can be serviced separately.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Pyrotechnic Device Health and Safety Precautions .

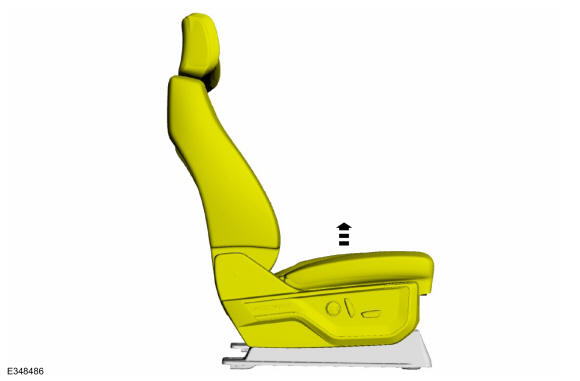

  2. If equipped with a power seat, raise the seat to its highest point of travel.
    GFD562468Courtesy of FORD MOTOR COMPANY
  3. Remove the front passenger seat. Refer to: Front Seat .

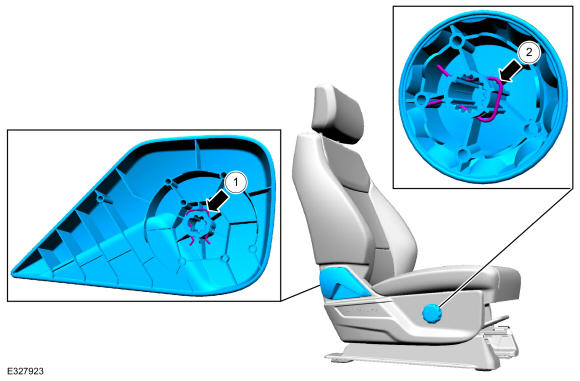

    1. If equipped. Remove the retainer and the recline adjusting handle.
    2. If equipped. Remove the retainer and the lumbar adjusting handle.
    GFD562469Courtesy of FORD MOTOR COMPANY

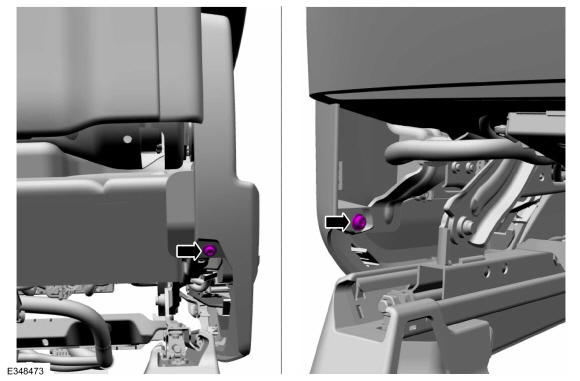

  5. Remove the front seat cushion side shield screws.
    GFD562470Courtesy of FORD MOTOR COMPANY

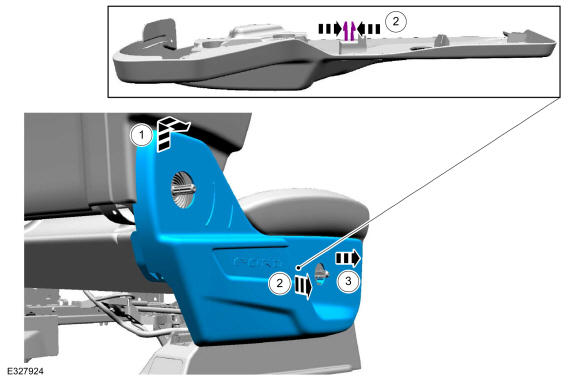

    1. Firmly grasp the front seat cushion side shield, lift up and out, separating the front seat cushion side shield from the recliner bracket.
    2. If equipped. From underneath, squeeze the retainers together and pull out on the front seat side shield.
    3. Slide the front seat cushion side shield forward and for a manual front seat track, remove the front seat cushion side shield.
    GFD562471Courtesy of FORD MOTOR COMPANY

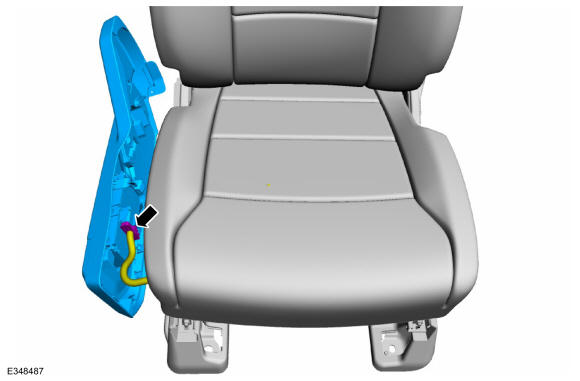

  7. If equipped. Disconnect the front seat control switch electrical connector and remove the front seat cushion side shield.
    GFD562472Courtesy of FORD MOTOR COMPANY

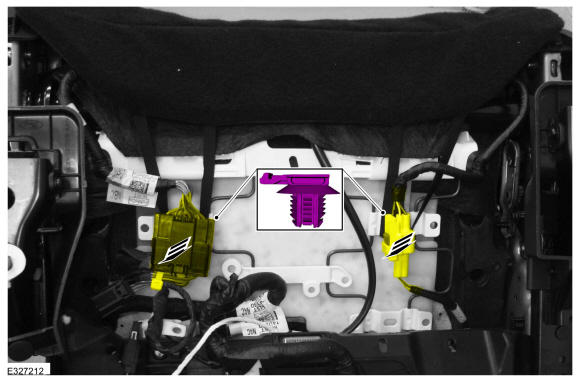

  8. Detach the front seat electrical connector retainers and position the wiring harnesses aside.
    GFD562473Courtesy of FORD MOTOR COMPANY

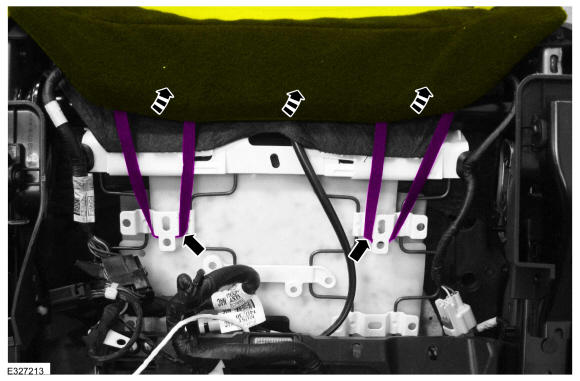

  9. Detach the front seat backrest cover straps and position the front seat backrest cover aside.
    GFD562474Courtesy of FORD MOTOR COMPANY

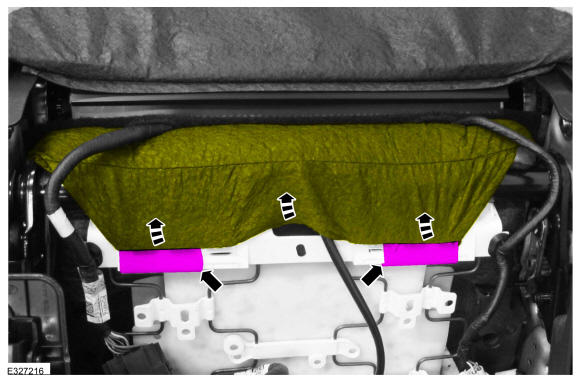

  10. Vehicles without Max Recline front seat. Detach the front seat cushion cover J-clips and position the front seat cushion cover aside.
    GFD562475Courtesy of FORD MOTOR COMPANY

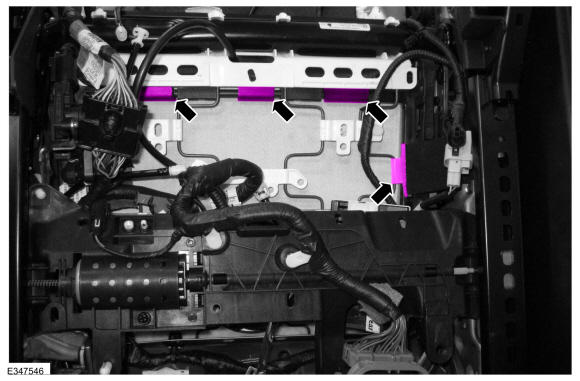

  11. Vehicles with Max Recline front seat. Detach the front seat cushion cover J-clips.
    GFD562453Courtesy of FORD MOTOR COMPANY

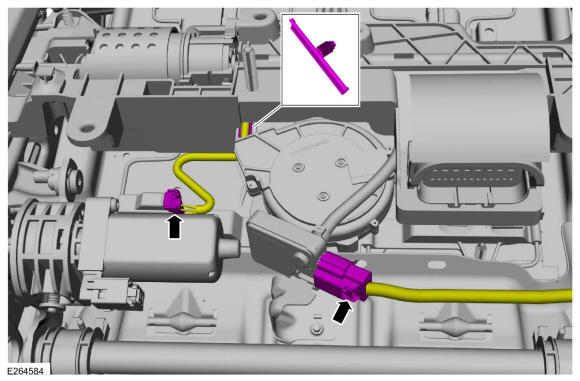

    • Disconnect the OCS sensor.

    • If equipped with heated seat. Disconnect the front seat cushion heater mat electrical connector and wiring harness retainer.

    GFD562476Courtesy of FORD MOTOR COMPANY

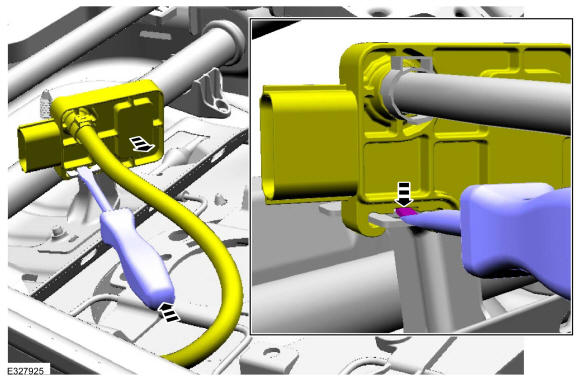

  13. NOTE: Using excessive force when bending the bracket tab can damage the OCSM (occupant classification system module) housing.
    NOTE: Follow the unique instructions or graphic for this step in the installation.

    Bend the bracket tab and remove the OCSM from the bracket. Use the General Equipment: Flat Headed Screw Driver

    GFD562477Courtesy of FORD MOTOR COMPANY

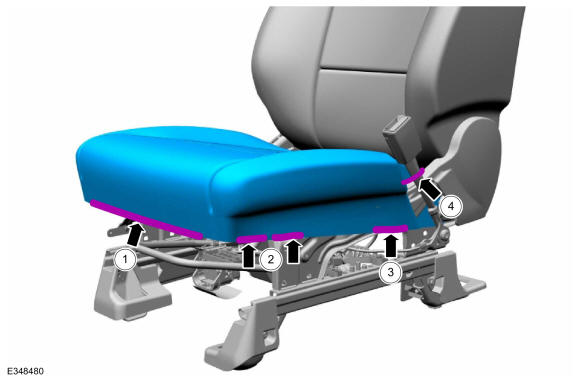

    1. Detach the front seat cushion cover front J-clip.
    2. On both sides. Detach the front seat cushion cover corner J-clips.
    3. On both sides. Detach the front seat cushion cover side J-clip.
    4. Release the front seat cushion cover strap from around the front seatbelt buckle.
    GFD562478Courtesy of FORD MOTOR COMPANY

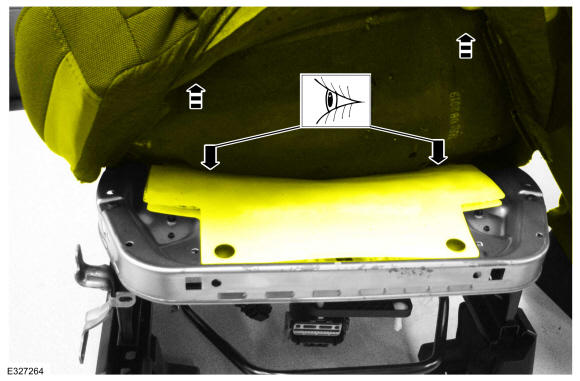

  15. NOTE: When equipped with an OCS service kit, the OCS is adhered to the bottom of the front seat cushion foam. This requires the front seat cushion cover, foam and OCS to be positioned aside as an assembly.

    Lift the front seat cushion foam. If the front seat cushion foam and OCS are adhered together, then the OCS is a service kit. If nothing is adhered together, then the OCS is OE (original equipment).

    GFD562479Courtesy of FORD MOTOR COMPANY

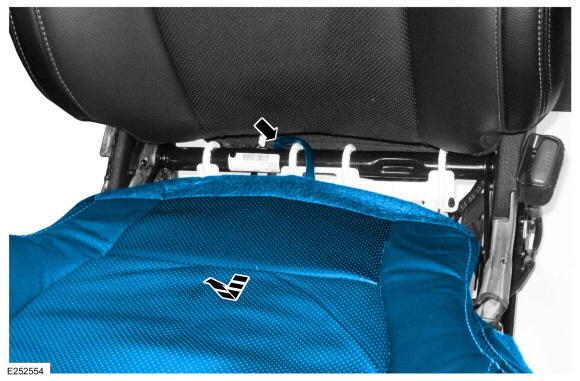

  16. NOTE: Note the wiring harness routing for proper installation.

    If equipped with an OE OCS, route the front seat cushion heater mat wiring harness pigtail (if equipped) out from between the front seat cushion and backrest and remove the front seat cushion cover and foam as an assembly.

    GFD562480Courtesy of FORD MOTOR COMPANY

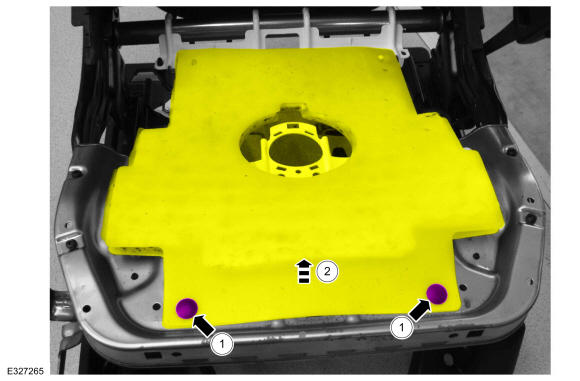

  17. NOTE: OE OCS shown, service kit similar.

    1. Remove the OCS pin-type retainers.
    2. Lift the OCS sensor from the front seat track.

    GFD562481Courtesy of FORD MOTOR COMPANY
  18. If equipped with an OCS service kit. Route the front seat cushion heater mat wiring harness pigtail (if equipped) out from between the front seat cushion and front seat backrest and start OCS removal.
    GFD562480Courtesy of FORD MOTOR COMPANY

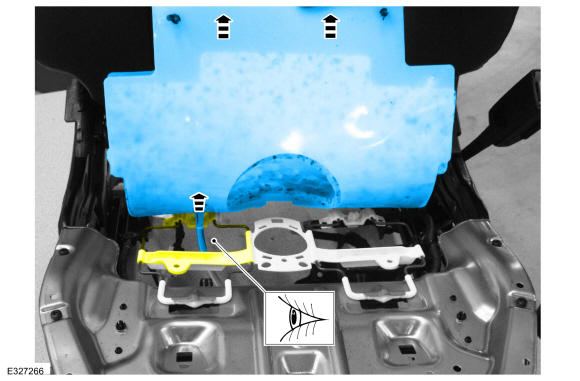

  19. NOTE: Note the location of the OCS hose and heater mat pigtail as it passes through the front seat cushion support for proper installation.

    If equipped with an OE or service kit OCS. Route out the OCS hose and sensor from between the front seat cushion support wires and remove the OCS.

    GFD562482Courtesy of FORD MOTOR COMPANY

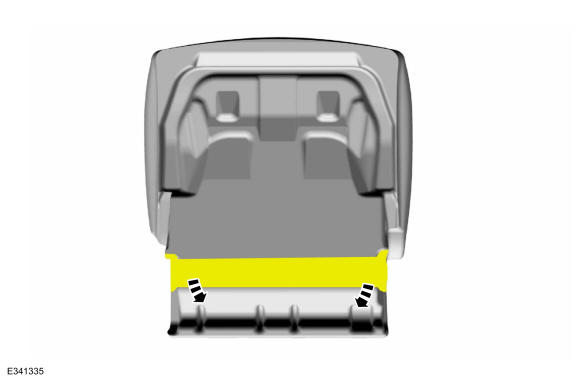

  20. NOTE: This step is only necessary when installing a new component.

    Invert the rear portion of the front seat backrest cover from the front seat foam.

    GFD562483Courtesy of FORD MOTOR COMPANY

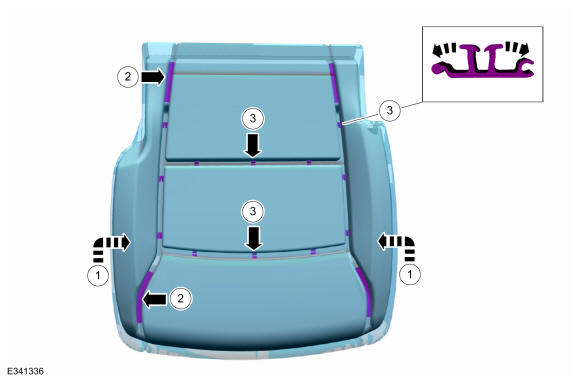

  21. NOTE: This step is only necessary when installing a new component.

    Passenger seat without max recline. Remove the front seat cushion cover.

    1. Invert the front seat cushion cover.
    2. NOTE: Use care when separating the front seat cushion cover from the hook-and-loop strips, or the hook-and-loop strips can be torn from the front seat cushion foam.

      Release the hook-and-loop strips.

    3. NOTE: Use care when separating the front seat cushion cover from the hook-and-arrows, or the hooks can be torn from the front seat cushion foam.

      Release the hook-and-arrows.

    GFD562484Courtesy of FORD MOTOR COMPANY

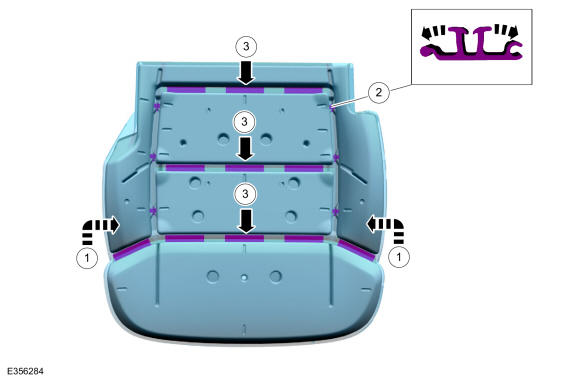

  22. NOTE: This step is only necessary when installing a new component.

    Passenger seat with max recline. Remove the front seat cushion cover.

    1. Invert the front seat cushion cover.
    2. NOTE: Use care when separating the front seat cushion cover from the hook-and-arrows, or the hooks can be torn from the front seat cushion foam.

      Release the hook-and-arrows.

    3. NOTE: Use care when separating the front seat cushion cover from the hook-and-loop strips, or the hook-and-loop strips can be torn from the front seat cushion foam.

      Release the hook-and-loop strips.

GFD562485Courtesy of FORD MOTOR COMPANY
