Driver Knee Airbag: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Pyrotechnic Device Health and Safety Precautions .
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

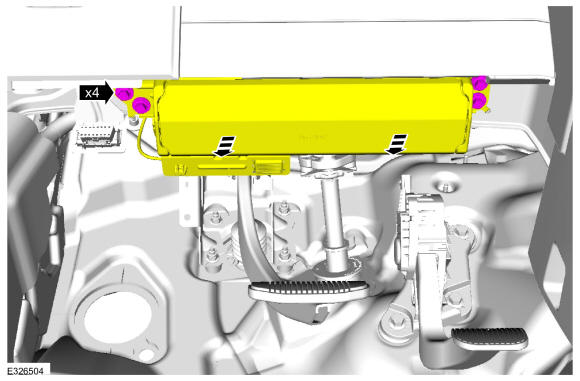

- Remove the bolts and position the driver knee airbag out from the instrument panel.
Torque: 93 lb.in (10.5 Nm)
- Remove the driver knee airbag.

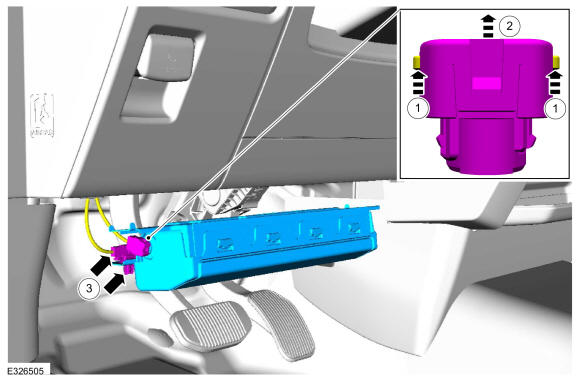

- Raise the locking tabs of the driver knee airbag electrical connector.
- Disconnect the driver knee airbag electrical connector.

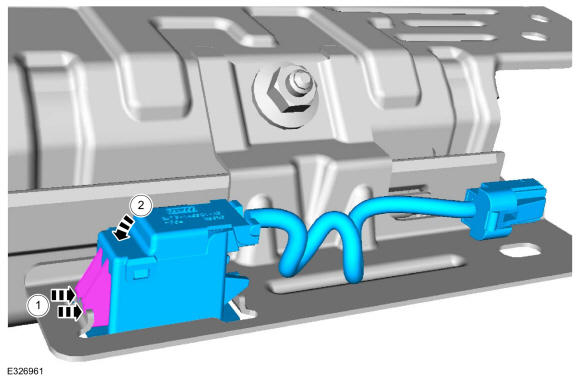

- Disconnect the interior lamp electrical connector and detach the pin-type retainer.
-
NOTE: This step is only necessary when installing a new component.
Remove the interior lamp from the bracket.
- Push in and release the retainers.
- Rotate the interior lamp assembly out of the bracket.
-
NOTE: This step is only necessary when installing a new component.

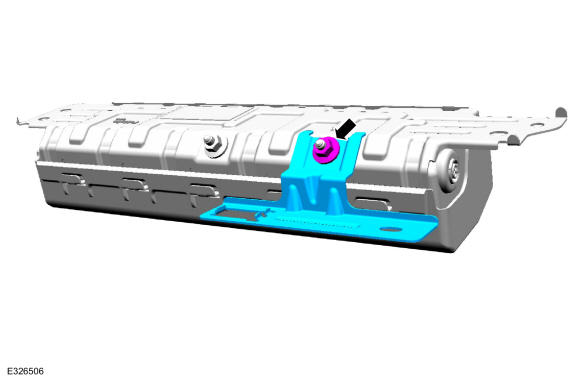

Remove the nut and the driver knee airbag bracket.
