Driver Airbag: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Incorrect repair techniques or actions can cause an accidental Supplemental Restraint System deployment. Make sure the restraint system is depowered before reconnecting the component. Refer to Supplemental Restraint System (SRS) Depowering . Failure to precisely follow depowering instructions could result in serious personal injury from an accidental deployment.

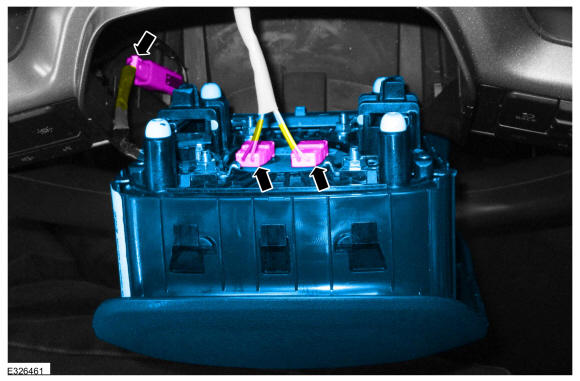

- Connect the driver airbag electrical connectors.

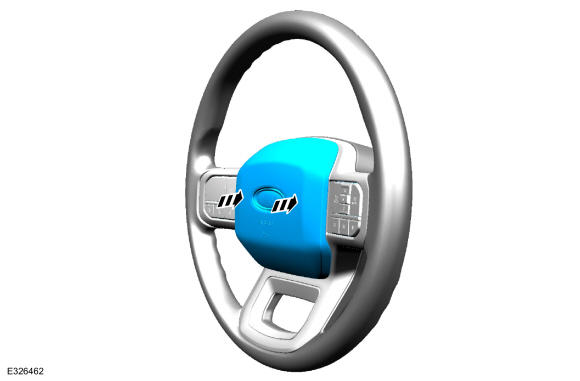

- Align the driver airbag to the steering wheel and push in, engaging the driver airbag retainers to the spring clips.
- Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
