B-Pillar Side Impact Sensor - SuperCab: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Pyrotechnic Device Health and Safety Precautions .
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
-

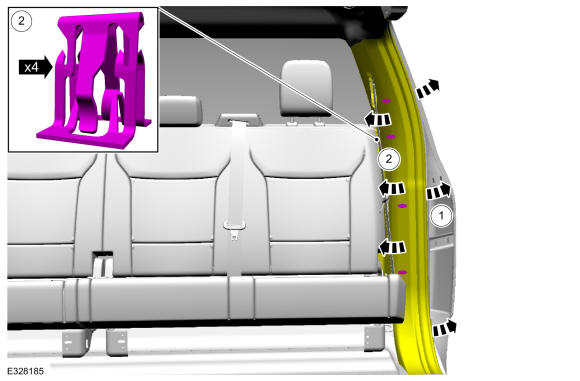

- Position the weather strip away from the B-pillar trim panel.
- Release the clips and position the B-pillar trim panel away enough to access the B-pillar side impact sensor.

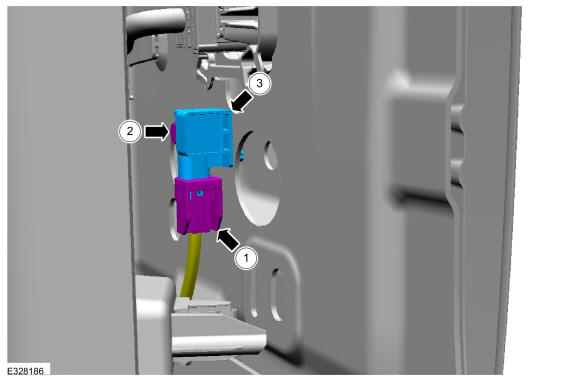

- Remove the B-pillar side impact sensor.
- Disconnect the electrical connector.
- Remove the bolt.
Torque: 119 lb.in (13.5 Nm)
- Remove the side impact sensor.
