Trough Assembly: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .

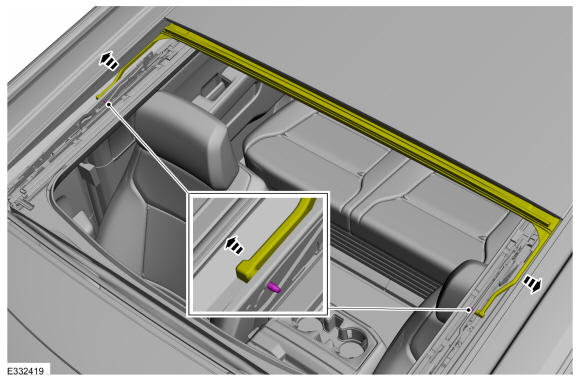

- Detach the trough assembly arms on both sides.

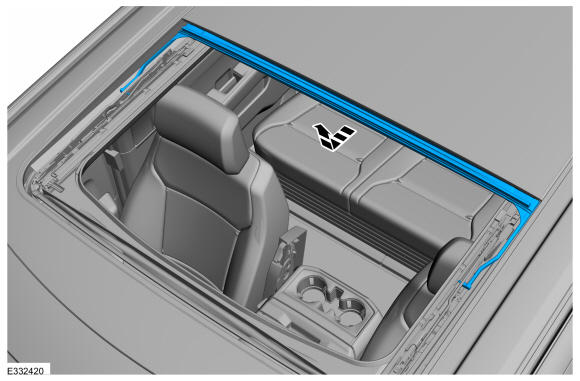

- Pull the trough assembly towards the front of the vehicle and remove the trough assembly.
