Roof Opening Panel Frame: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The air deflector must be installed with the roof opening panel in the open position.

If replacing the roof opening panel frame, remove the air deflector. Refer to: Air Deflector .
Fully close the roof opening panel glass.

Courtesy of FORD MOTOR COMPANY
Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .
Fully open the roof opening panel shield.
Remove the headliner. Refer to: Headliner - SuperCrew .
Remove both side curtain airbags. Refer to: Side Curtain Airbag - SuperCrew .

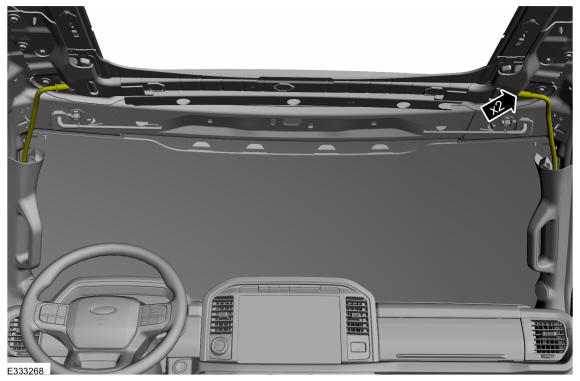

Disconnect the front drain tubes.

Courtesy of FORD MOTOR COMPANY

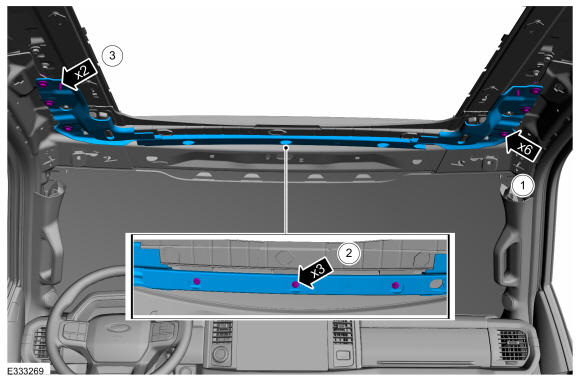

1. Remove the front beam side mounting bolts.
  Torque

  : 106 lb.in (12 Nm)
2. Remove the front beam center mounting bolts.
  Torque

  : 89 lb.in (10 Nm)
3. Detach the retainers and remove the front beam.
Courtesy of FORD MOTOR COMPANY

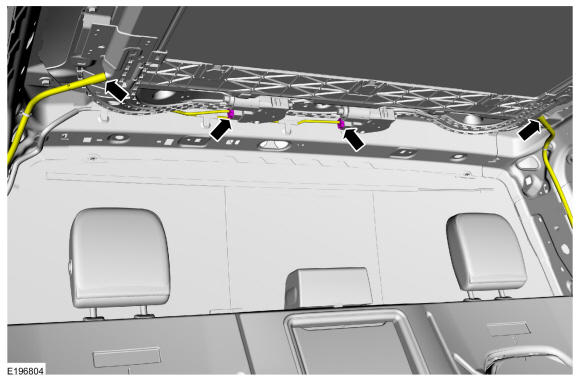

Disconnect the rear drain tubes and the roof opening panel motor electrical connectors.

Courtesy of FORD MOTOR COMPANY

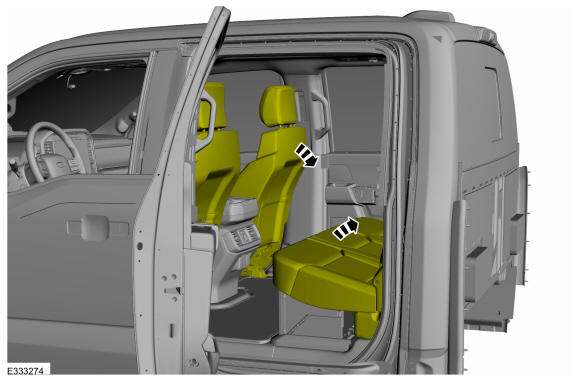

Fold the front seat cushions downward and rear seat cushions upward.

Courtesy of FORD MOTOR COMPANY

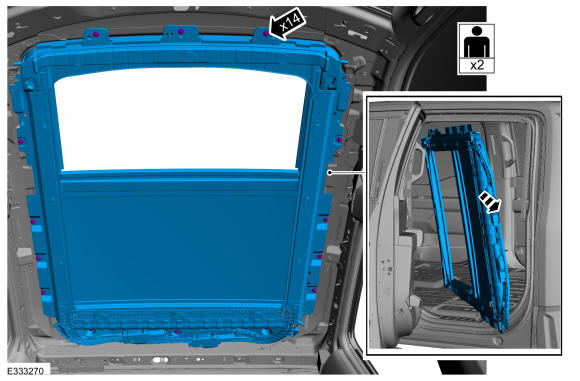

With the aid of an assistant, remove the bolts and remove the roof opening panel frame from the LH rear door opening.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
