Roof Opening Panel Fixed Glass: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the roof opening panel frame. Refer to: Roof Opening Panel Frame .
-
NOTE: Position the roof opening panel frame upside down on a suitable workbench.

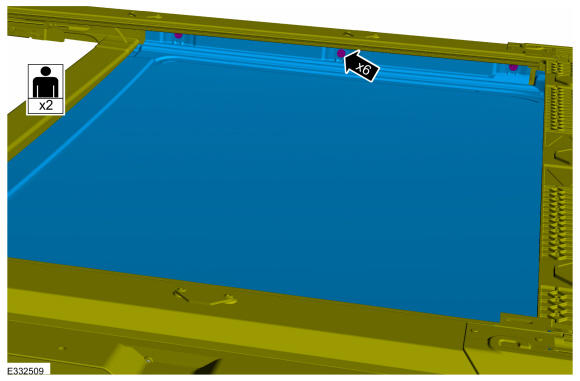

Remove the roof opening panel fixed glass bolts and with the aid of an assistant, separate the frame from the glass.
Torque
: 35 lb.in (4 Nm)
