Air Deflector: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

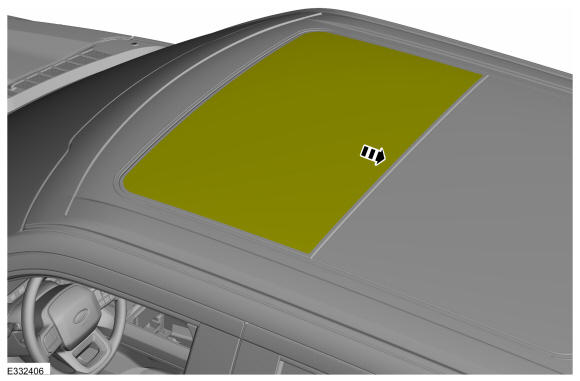

Fully open the roof opening panel glass.

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown in illustration, RH side similar.

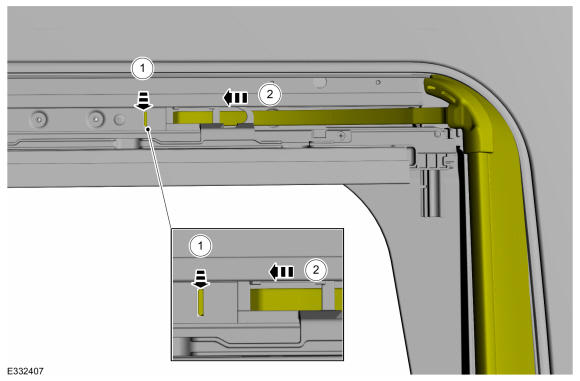

On both sides. Release the air deflector locking tab.
1. Depress the spring steel locating tab downward with a flat-bladed screwdriver.
  Use the General Equipment: Flat-Bladed Screwdriver
2. Push the air deflector toward the rear of the vehicle.
Courtesy of FORD MOTOR COMPANY

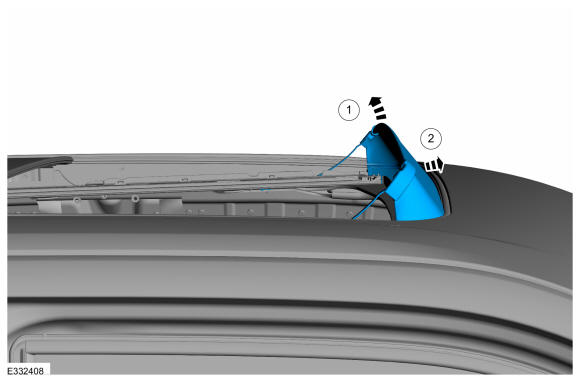

Remove the air deflector assembly.
1. Fully open the air deflector assembly and disengage from the frame.
2. Pull forward to remove air deflector assembly.

Courtesy of FORD MOTOR COMPANY
