Roof Opening Panel - Component Location

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown in illustration, RH side similar.

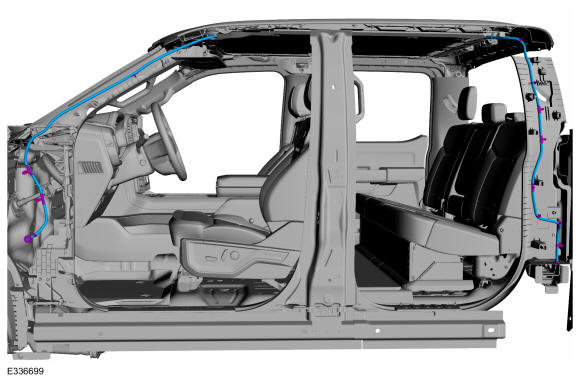

Roof Opening Panel Drain Tubes

Courtesy of FORD MOTOR COMPANY
